Panasonic recommends a PCB layout with a solid ground plane, minimal track length, and a decoupling capacitor (e.g., 10nF) between the VCC and GND pins to reduce noise and ensure stable operation.
The POR circuitry is designed to reset the device during power-up. To ensure proper operation, ensure that the power supply voltage rises slowly (typically < 10ms) and reaches the recommended operating voltage (5V) before applying any input signals.
Although the datasheet doesn't specify a maximum input voltage, it's recommended to limit the input voltage to 5.5V to prevent damage to the device. Exceeding this voltage may cause permanent damage or affect the device's reliability.
While the datasheet specifies an operating temperature range of -40°C to 85°C, Panasonic recommends derating the device's performance at high temperatures (above 70°C). Ensure proper thermal management and consider using a heat sink if operating in high-temperature environments.
To troubleshoot issues, verify the power supply voltage, check for proper PCB layout and decoupling, ensure correct input signal levels and timing, and review the device's operating conditions. If issues persist, consult Panasonic's application notes or contact their technical support.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFY2-DC5V Overview

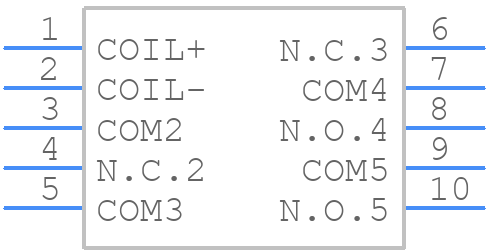

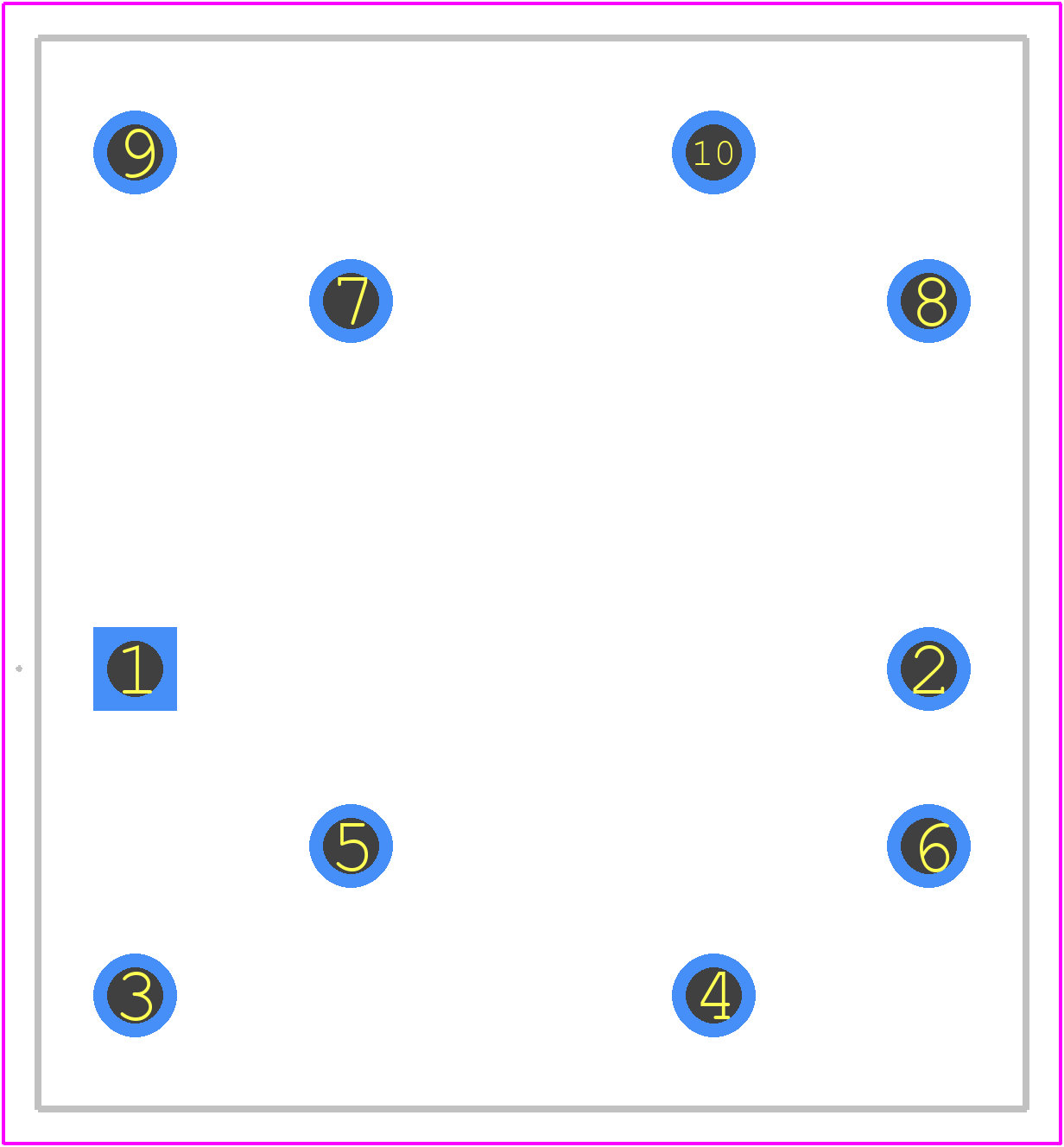

Use the download button to access the SFY2-DC5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFY2-,
or try a keyword search, such as Special Relays
