Panasonic recommends a PCB layout with a large ground plane, short and wide traces for the input and output, and a decoupling capacitor (e.g., 10uF) between the input and ground to reduce noise and ensure stable operation.
To ensure reliability, follow the recommended derating curves for temperature and output current, and consider using a heat sink or thermal interface material to reduce the junction temperature. Additionally, ensure proper airflow and avoid exposing the device to moisture or humidity.
While not explicitly stated in the datasheet, a general rule of thumb is to keep the input ripple voltage below 10% of the nominal input voltage to ensure stable operation and prevent oscillations.
Yes, but with caution. Panasonic recommends using a master-slave configuration with a single output capacitor to ensure stable operation. Additionally, ensure that the input and output connections are properly synchronized to prevent oscillations and reduce electromagnetic interference (EMI).
The typical start-up time of the SFY4-DC18V is around 10-20ms, but this can vary depending on the input voltage, output load, and PCB layout. Ensure that your system design can accommodate this start-up time to prevent unwanted behavior or errors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFY4-DC18V Overview

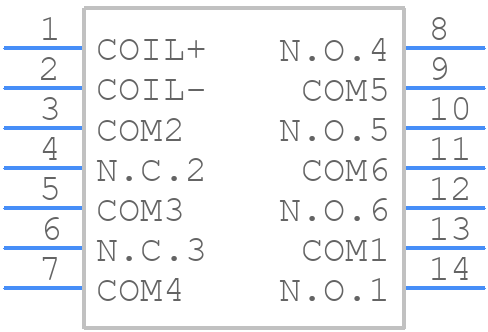

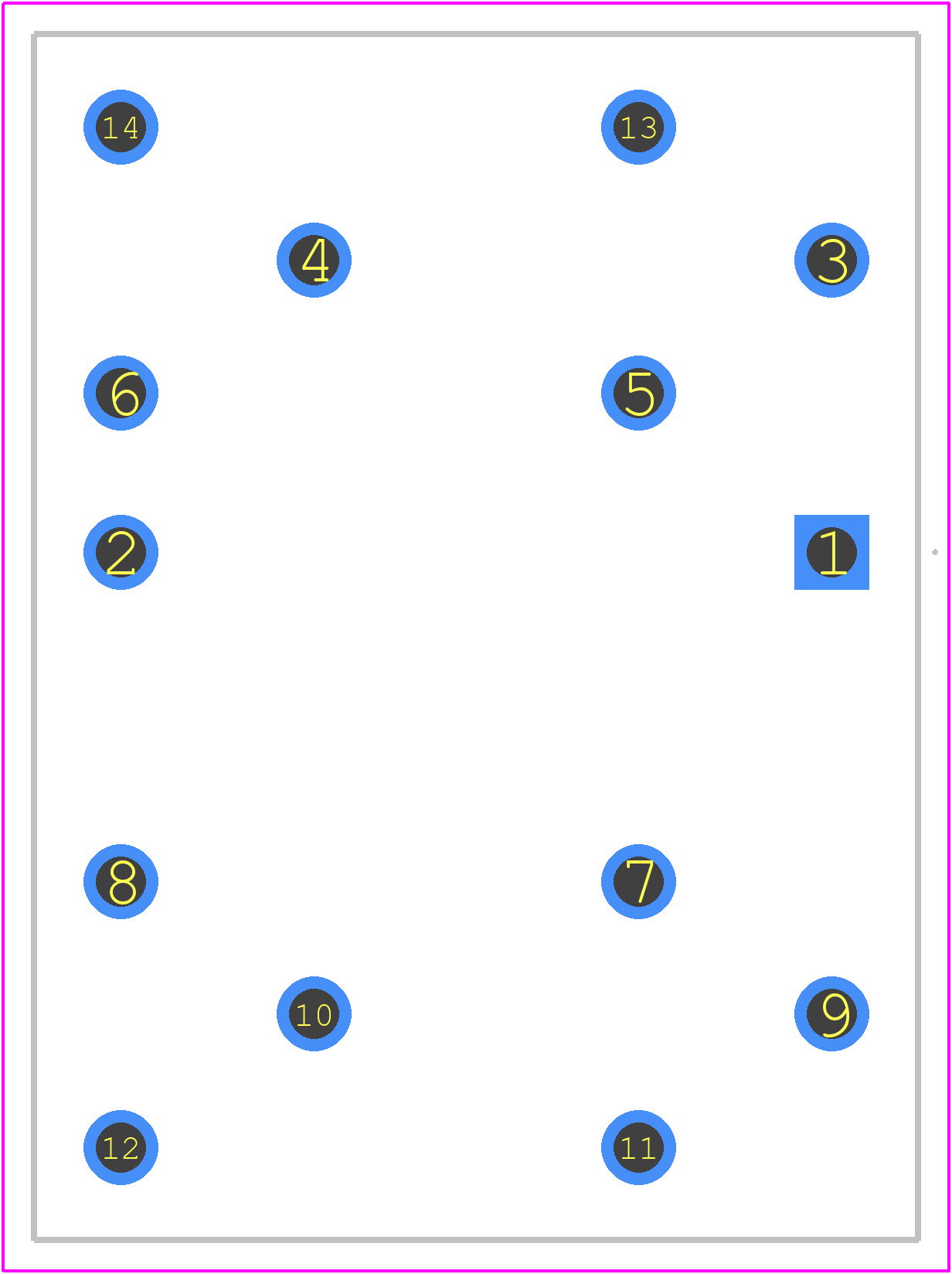

Use the download button to access the SFY4-DC18V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFY4-,
or try a keyword search, such as Special Relays
