A good PCB layout for the SFY5-DC18V should ensure minimal inductance and resistance in the circuit. Keep the input and output capacitors close to the module, and use a solid ground plane to reduce noise and EMI. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
To ensure reliability in high-temperature environments, make sure to follow the recommended derating curves for the module's output power and input voltage. Also, provide adequate airflow around the module, and consider using a heat sink or thermal interface material to reduce the junction temperature.
The maximum allowable ripple current for the input capacitors depends on the capacitor type and rating. As a general rule, choose capacitors with a ripple current rating of at least 2-3 times the maximum input current of the module. For the SFY5-DC18V, a ripple current rating of 1-2 A is recommended.
Yes, the SFY5-DC18V can be used in a redundant or parallel configuration to achieve higher power output or redundancy. However, it's essential to ensure that the modules are synchronized and share the load equally to prevent oscillations or instability. Consult Panasonic's application notes or contact their support team for more information.
The typical start-up time for the SFY5-DC18V is around 10-20 ms, depending on the input voltage and output load. However, this time can vary depending on the specific application and circuit design. It's recommended to consult the datasheet and application notes for more information.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFY5-DC18V Overview

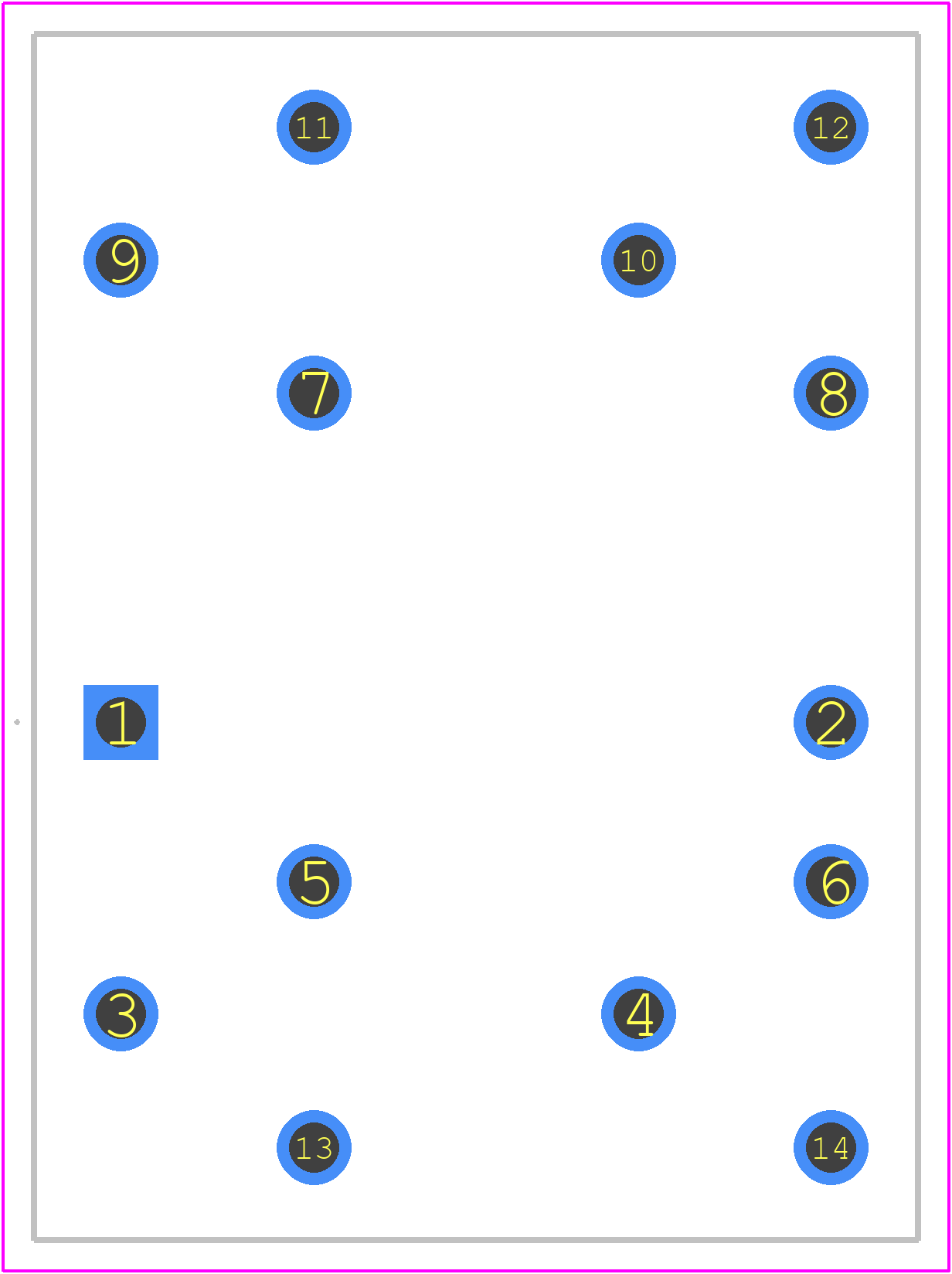

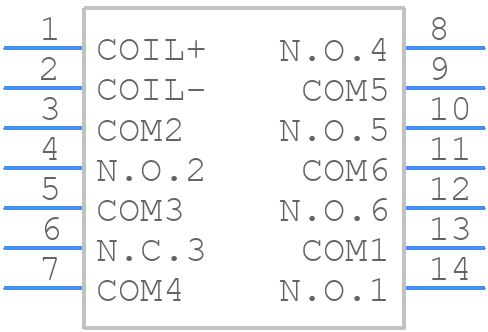

Use the download button to access the SFY5-DC18V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SFY5-,
or try a keyword search, such as Special Relays
