The maximum switching frequency of the SFY5-DC24V relay is 20 Hz. However, it's recommended to consult with Panasonic's application engineers to determine the suitable switching frequency for your specific application.
The SFY5-DC24V relay is designed to operate within a temperature range of -40°C to 85°C. While it can tolerate high temperatures, it's essential to ensure that the relay is properly cooled and that the ambient temperature does not exceed 85°C to prevent premature failure.
To ensure the relay's contacts are clean and free of contamination, it's recommended to handle the relay by the body, avoiding touching the contacts or leads. Additionally, the relay should be stored in a clean, dry environment, and any cleaning should be done with a soft, dry brush or a lint-free cloth.
The recommended PCB layout and spacing for the SFY5-DC24V relay can be found in the Panasonic application note or datasheet. Generally, it's recommended to follow a minimum spacing of 1.5 mm between the relay and other components, and to ensure that the relay is mounted on a solid, unbroken ground plane.
The SFY5-DC24V relay is designed for general-purpose use and may not be suitable for safety-critical applications. If you're designing a safety-critical system, it's recommended to consult with Panasonic's application engineers to determine the suitability of the relay for your specific application.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SFY5-DC24V Overview

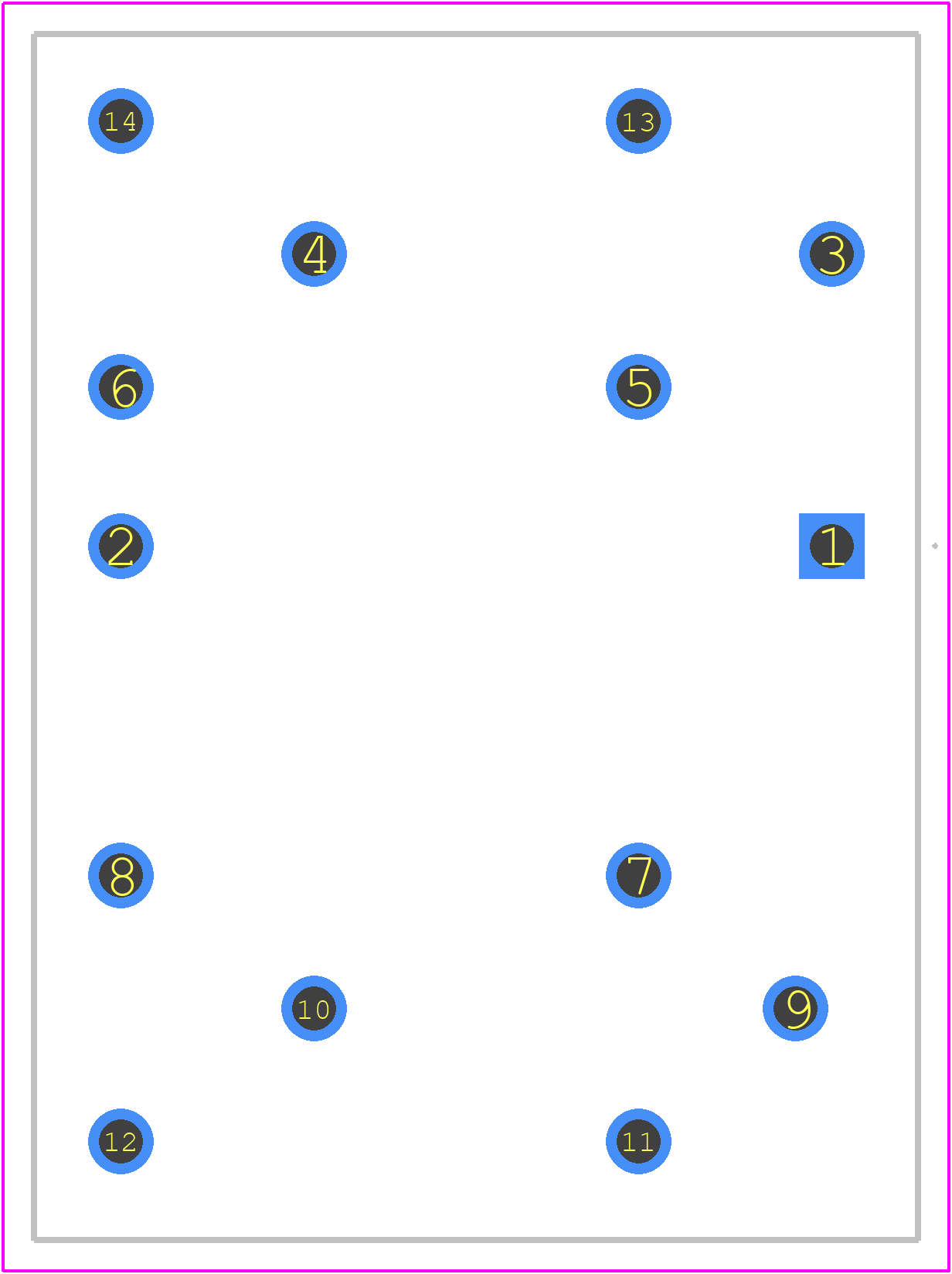

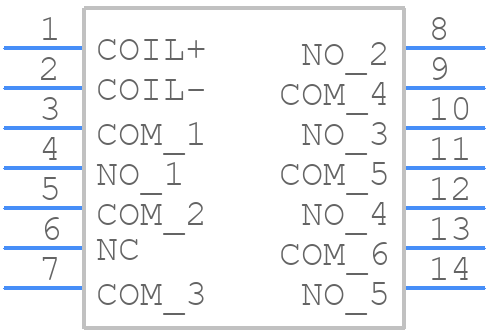

Use the download button to access the SFY5-DC24V schematic symbol, PCB footprint, and 3D model.
