A good PCB layout for the SG2524BN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded enclosure and to keep the device away from other noise-sensitive components.
To ensure proper biasing, make sure to follow the recommended voltage and current settings outlined in the datasheet. Additionally, use a stable voltage source, and decouple the input and output pins with capacitors to reduce noise and oscillations.
The SG2524BN has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and avoid operating the device at maximum power for extended periods. Also, follow the recommended thermal design guidelines outlined in the datasheet.
To troubleshoot issues with the SG2524BN, start by checking the power supply and input/output connections for any signs of noise or oscillations. Verify that the device is properly biased and that the input and output capacitors are properly sized. Use an oscilloscope to visualize the waveforms and identify any anomalies. If the issue persists, consult the datasheet and application notes for guidance.
Yes, when using the SG2524BN in a high-reliability or high-availability application, consider using redundant systems, implementing error detection and correction mechanisms, and following strict quality control and testing procedures. Additionally, ensure that the device is operated within its recommended specifications and that the system is designed to tolerate single-point failures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG2524BN Overview

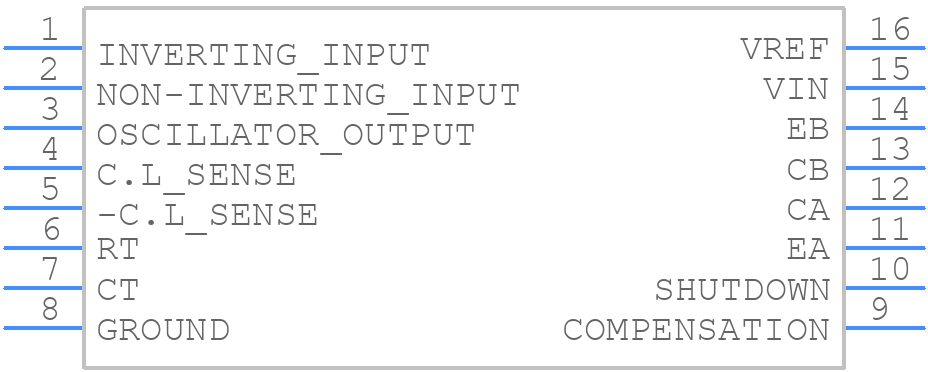

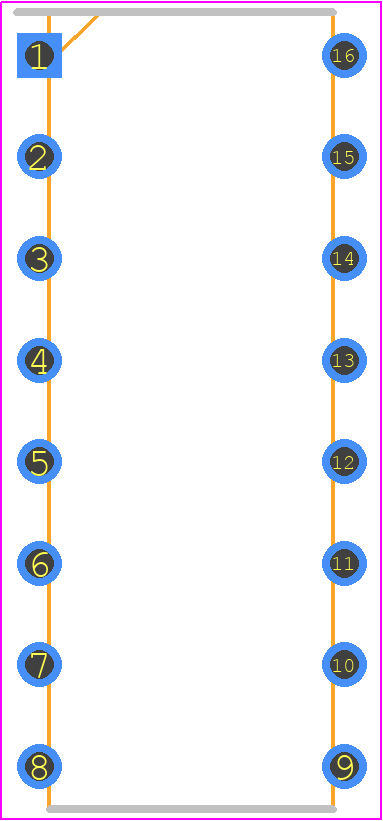

Use the download button to access the SG2524BN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG252,
or try a keyword search, such as Switching Regulator or Controllers
