A good PCB layout for the SG2524D involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, using a shielded inductor and keeping the switching node (SW) away from sensitive nodes can help reduce EMI and noise.
The inductor value for the SG2524D depends on the input voltage, output voltage, and desired output current. A good starting point is to use the inductor value calculation formula provided in the datasheet, and then adjust based on the specific application requirements. It's also important to consider the inductor's saturation current, DC resistance, and core material.
The SG2524D is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature (TJ) does not exceed 150°C to maintain reliability and prevent thermal shutdown.
Yes, the SG2524D can be used in a synchronous rectification configuration to improve efficiency. However, it's essential to ensure that the device is properly configured and that the synchronous rectifier is properly sized and controlled to avoid shoot-through currents and other issues.
To troubleshoot issues with the SG2524D, start by checking the PCB layout, component values, and soldering quality. Verify that the input and output voltages are within the recommended range, and that the device is properly configured. Use an oscilloscope to observe the waveforms and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG2524D Overview

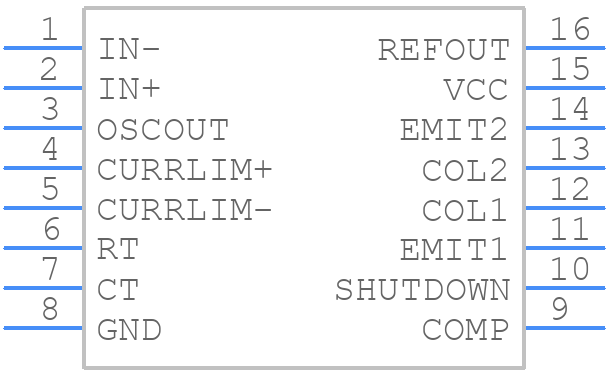

Use the download button to access the SG2524D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG252,
or try a keyword search, such as Switching Regulator or Controllers
