SG2524N - Microsemi Corporation

Description: Switching Controllers Voltage Mode PWMs

Download SG2524N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

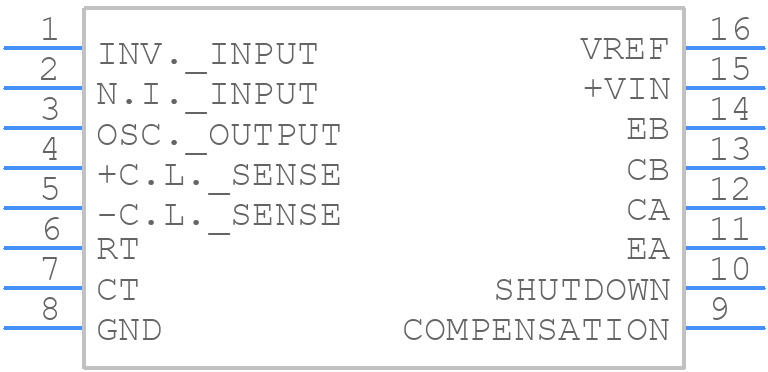

SG2524N - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints
SG2524N - Microsemi Corporation PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Pin PDIP
click to zoom
3D Models
SG2524N - Microsemi Corporation - 3D model - Dual-In-Line Packages - 16-Pin PDIP
click to zoom

SG2524N Details

  • Manufacturer Part Number:

    SG2524N

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    DIP

  • Package Description:

    DIP-16

  • Pin Count:

    16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    40 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.555 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.1 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Surface Mount:

    NO

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    400 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7.62 mm

SG2524N Frequently Asked Questions (FAQs)

  • Microsemi recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital grounds separate. Additionally, it's recommended to use a ferrite bead or a 10-ohm resistor in series with the VCC pin to reduce high-frequency noise.
  • The SG2524N requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA. It's also important to ensure that the input voltage (VIN) is within the recommended range of 2.5V to 5.5V.
  • The SG2524N is rated for operation from -40°C to +85°C, but it's recommended to operate within the range of 0°C to +70°C for optimal performance and reliability.
  • To troubleshoot issues with the SG2524N, check the PCB layout for any noise or EMI issues, ensure proper biasing and input voltage, and verify that the output is properly terminated. Additionally, use an oscilloscope to check for any signs of oscillation or instability.
  • Yes, the SG2524N is compatible with lead-free soldering processes, but it's recommended to follow the recommended soldering profile and temperature range to ensure reliable operation.
