SG2525AP - STMicroelectronics

Description: SG2525AP, PWM Voltage Mode Controller, Dual 400 mA 400 kHz, 16-Pin SO N

Download SG2525AP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

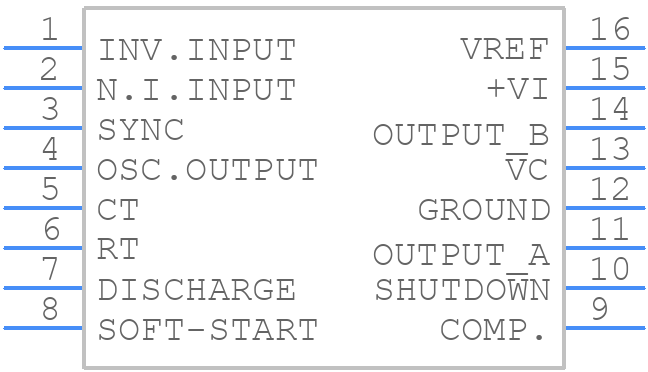

SG2525AP - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
SG2525AP - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO-16N
click to zoom
3D Models
SG2525AP - STMicroelectronics - 3D model - Small Outline Packages - SO-16N
click to zoom

SG2525AP Details

  • Manufacturer Part Number:

    SG2525AP

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SO-16

  • Pin Count:

    16

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    6.9

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    35 V

  • Input Voltage-Min:

    8 V

  • Input Voltage-Nom:

    20 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SO16(UNSPEC)

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max (Isup):

    20 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    500 kHz

  • Technology:

    BIPOLAR

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SG2525AP Frequently Asked Questions (FAQs)

  • A good PCB layout for the SG2525AP involves keeping the input and output stages separate, using a star-ground configuration, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated ground plane can help reduce EMI.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are properly selected and placed close to the device. Additionally, a minimum ESR (Equivalent Series Resistance) of 1 ohm for the output capacitor is recommended.
  • The SG2525AP can operate in an ambient temperature range of -40°C to +125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to +85°C for optimal performance.
  • Yes, the SG2525AP is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its specified parameters.
  • To troubleshoot issues with the SG2525AP, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any unusual voltage or current waveforms. If the issue persists, consult the datasheet and application notes for guidance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SG2525AP Overview

Use the download button to access the SG2525AP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG252, or try a keyword search, such as Switching Regulator or Controllers
