A good PCB layout for the SG3846N involves keeping the input and output stages separate, using a star-ground configuration, and minimizing the loop area of the switching node to reduce EMI. Microsemi provides a recommended PCB layout in their application notes.
To ensure stability, it's essential to follow the recommended compensation network and component values, as well as to ensure that the input and output capacitors are properly selected and placed. Additionally, the SG3846N has a built-in slope compensation feature that helps prevent oscillation.
The SG3846N has a maximum junction temperature rating of 150°C. However, it's recommended to keep the junction temperature below 125°C for reliable operation and to ensure a long lifespan.
Yes, the SG3846N is designed to meet the requirements of high-reliability and aerospace applications. It's built with a radiation-hardened design and is available in a variety of screening levels, including QML-V and ESCC. However, it's essential to consult with Microsemi's sales team to determine the specific requirements and screening levels needed for your application.
To troubleshoot issues with the SG3846N, start by checking the input voltage, output voltage, and current sense signals. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for abnormal waveforms or oscillations. If the issue persists, consult Microsemi's application notes and technical support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SG3846N Overview

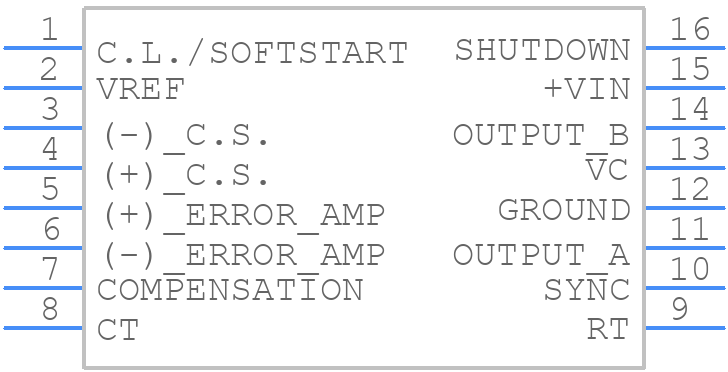

Use the download button to access the SG3846N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SG384,
or try a keyword search, such as Switching Regulator or Controllers
