SGGP.25.2.A.02 - Taoglas

Description: Antennas SGGP.25.2.A.02 GPS/GLONASS/Galileo 25*25*2mm SMD Mount Patch

Download SGGP.25.2.A.02 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

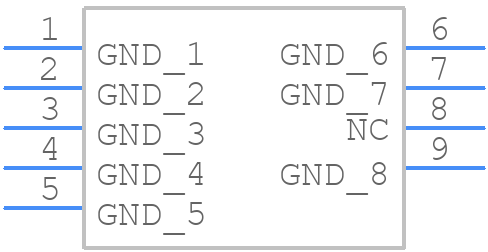

SGGP.25.2.A.02 - Taoglas - PCB symbol
click to zoom
PCB Footprints

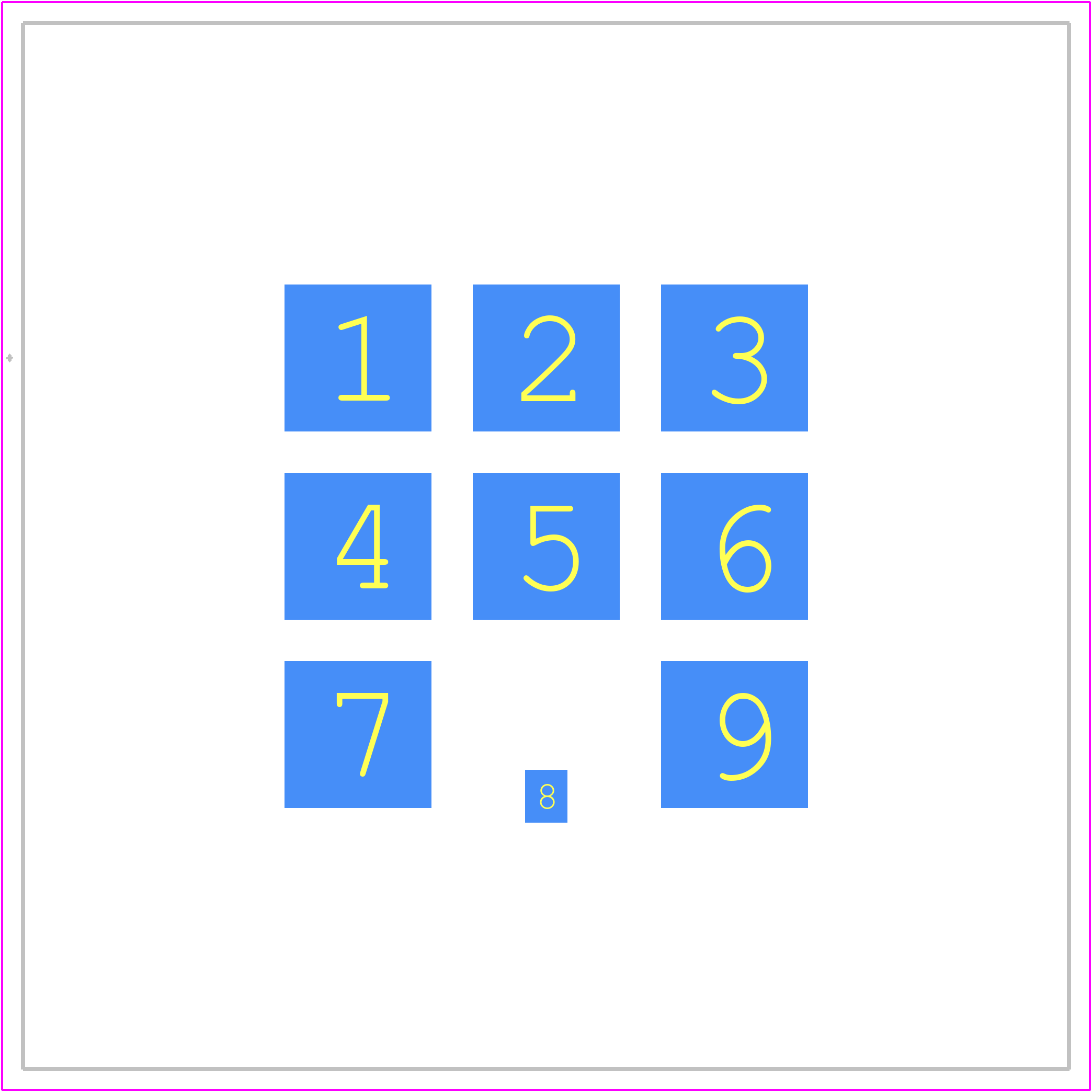

SGGP.25.2.A.02 - Taoglas PCB footprint - Other - Other - SGGP.25.2.A.02-2
click to zoom
3D Models
SGGP.25.2.A.02 - Taoglas - 3D model - Other - SGGP.25.2.A.02-2
click to zoom

SGGP.25.2.A.02 Details

  • Manufacturer Part Number:

    SGGP.25.2.A.02

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Factory Lead Time:

    13 Weeks, 5 Days

  • Manufacturer:

    Taoglas Antenna Solutions

  • Additional Feature:

    IT CAN ALSO OPERATE AT 1597-1607 MHZ, ANTENNA GAIN IS -1.07 DBI

  • Application:

    GALILEO/GLONASS/GNSS/GPS

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Mounting Feature:

    SURFACE MOUNT

  • Omnidirectional:

    NO

  • Operating Frequency-Max:

    1576.443 MHz

  • Operating Frequency-Min:

    1574.397 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • RF/Microwave Device Type:

    GPS ANTENNA

  • Screening Level:

    IATF 16949

  • Surface Mount:

    YES

SGGP.25.2.A.02 Frequently Asked Questions (FAQs)

  • The SGGP.25.2.A.02 is a vertically polarized antenna, so it's recommended to install it with the antenna element vertical to ensure optimal performance.
  • The SGGP.25.2.A.02 is designed to operate in temperatures ranging from -40°C to +85°C, making it suitable for outdoor and industrial applications.
  • Yes, the SGGP.25.2.A.02 is suitable for outdoor use and has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • Taoglas recommends using a low-loss cable with a length of 1-2 meters to minimize signal attenuation and ensure optimal performance.
  • Yes, Taoglas offers customization options for the SGGP.25.2.A.02, including frequency tuning and mechanical modifications, to meet specific application requirements.
