Part Image

SGL0622Z - Qorvo

Description: 5 - 4000 MHz SiGe HBT MMIC Low Noise Amplifier

Download SGL0622Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

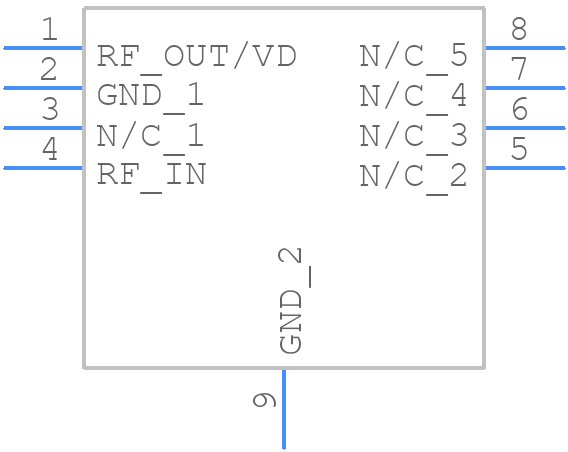

SGL0622Z - Qorvo - PCB symbol
click to zoom
PCB Footprints
SGL0622Z - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - SGL0622Z
click to zoom
3D Models
SGL0622Z - Qorvo - 3D model - Small Outline No-lead - SGL0622Z
click to zoom

SGL0622Z Details

  • Manufacturer Part Number:

    SGL0622Z

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    5A991.B

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    Qorvo

  • YTEOL:

    6.64

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    25 dB

  • Input Power-Max (CW):

    25 dBm

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    5 MHz

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC8,.08,20

  • Power Supplies:

    3.3 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    10.5 mA

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Terminal Finish:

    MATTE TIN

  • VSWR-Max:

    10

SGL0622Z Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the edge of the board to minimize radiation. A via-stitched ground plane under the device is also recommended to reduce radiation.
  • The SGL0622Z requires a bias voltage of 3.3V to 5V. A voltage regulator or a voltage divider can be used to generate the bias voltage. The bias voltage should be decoupled with a 10uF capacitor to reduce noise.
  • The SGL0622Z can handle up to 30 dBm of input power. However, the device may be damaged if the input power exceeds 33 dBm. It is recommended to use an attenuator or a limiter to prevent damage from high input power.
  • Use a spectrum analyzer to check the output frequency and power level. Verify that the bias voltage is within the recommended range. Check for any signs of overheating or physical damage. Consult the datasheet and application notes for troubleshooting guides.
  • Yes, the SGL0622Z can be used in a push-pull configuration to improve output power and reduce distortion. However, the device should be properly matched and biased to ensure optimal performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SGL0622Z Overview

Use the download button to access the SGL0622Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGL06, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
