Part Image

SGL0622ZSB - Qorvo

Description: High Gain, 28.6 dB at 1575 MHz  Low Noise Figure, 1.4 dB at 1575 MHz  Low Power Consumption 10.5 mA at +3.3 V  Battery Operation:+2.7 V to +3.6 V (Active Bias)  Fully Integrated Matching  Class 2 ESD Protection (>2000 V HBM)

Download SGL0622ZSB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

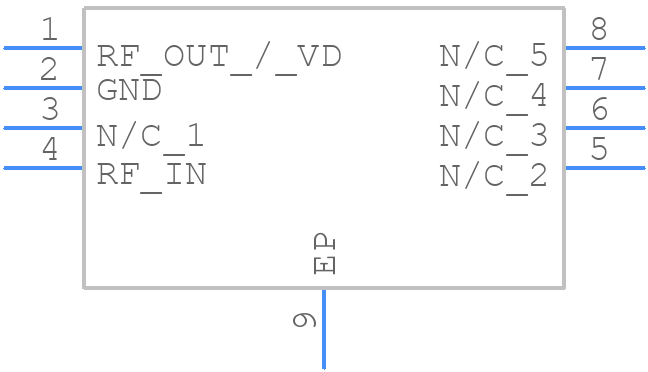

SGL0622ZSB - Qorvo - PCB symbol
click to zoom
PCB Footprints
SGL0622ZSB - Qorvo PCB footprint - Small Outline No-lead - Small Outline No-lead - 8 Pin, 2.0 mm x 2.0 mm DFN Package
click to zoom
3D Models
SGL0622ZSB - Qorvo - 3D model - Small Outline No-lead - 8 Pin, 2.0 mm x 2.0 mm DFN Package
click to zoom

SGL0622ZSB Details

  • Manufacturer Part Number:

    SGL0622ZSB

  • Manufacturer:

    Qorvo

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SGL0622ZSB Overview

Use the download button to access the SGL0622ZSB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGL06, or try a keyword search, such as RF/Microwave Amplifiers

About Qorvo

Qorvo is a prominent American semiconductor company that specializes in the design and manufacturing of radio frequency (RF) solutions. The company was formed in 2015 through the merger of TriQuint Semiconductor and RF Micro Devices. Qorvo's product portfolio encompasses a wide range of RF components and semiconductor technologies used in various applications, including wireless communications, aerospace and defense, and IoT (Internet of Things) devices.
