SGM40567-4.2XG/TR footprint, schematic symbol and 3D model by SGMICRO

SGM40567-4.2XG/TR - SGMICRO

Description: Stand-Alone Working of Complete Processes for Single-Cell Battery Charging ● Suitable for Li-Ion Phosphate Battery/ Li-Ion/Polymer Li-Ion/Lithium Titanate/ Nickel-Metal Hydride Secondary Battery and EDLC Capacitor Charging ● Optional Maximum Charge Voltage: 3.65V to 5.5V ● High Accuracy Safe and Fast Charging ● 4% Output Voltage Fold-Back Holding Function ● Works with Loose Coupling Coil ● Works with Solar Batteries ● Saturated Conduction Charging ● Automatic Thermal Current Limit ● Power Savi

Download SGM40567-4.2XG/TR Model

Schematic
symbols

PCB
footprints

3D
models

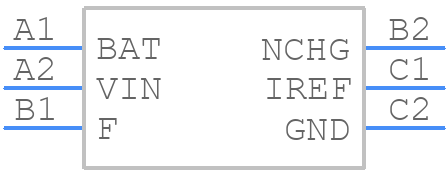

Symbol

click to zoom

PCB Footprints

SGM40567-4.2XG/TR - SGMICRO PCB footprint - BGA - BGA - WLCSP-0.92×1.16-6B

click to zoom

3D Models

SGM40567-4.2XG/TR - SGMICRO - 3D model - BGA - WLCSP-0.92×1.16-6B

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SGM40567-4.2XG/TR
Part Number SGM40567-4.2XG/TR
Manufacturer SGMICRO
Pin Count 6
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - WLCSP-0.92×1.16-6B
Released Date Feb 28, 2025
Last Modified Date Feb 28, 2025 3:36 AM UTC
Pinout / Pin List Click Here (Member Only)

SGM40567-4.2XG/TR Details

Manufacturer Part Number:
SGM40567-4.2XG/TR
Manufacturer:
SG Micro Corp

Trust Checks

Community Provided

System Verified

Community Approved

SGM40567-4.2XG/TR Overview

Use the download button to access the SGM40567-4.2XG/TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SGM40, or try a keyword search, such as Power Management Circuits
