STMicroelectronics provides a recommended PCB layout in the application note AN5046, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, including junction temperature (Tj) and ambient temperature (Ta). Additionally, consider using thermal interface materials, such as thermal pads or thermal grease, to improve heat transfer between the device and the heat sink.
While the datasheet specifies a maximum gate-source voltage (Vgs) of ±20V, it's essential to note that the absolute maximum rating is ±30V. However, to ensure reliable operation, it's recommended to keep the gate voltage within the specified range to avoid damage or degradation of the device.
To calculate the power dissipation of the SGT65R65AL, you need to consider the drain-source on-resistance (Rds(on)), the drain current (Id), and the voltage drop across the device. Use the following formula: Pd = Id^2 * Rds(on) + Vds * Id, where Vds is the drain-source voltage.
STMicroelectronics provides several gate drive circuit examples in the application note AN5046, including a bootstrap circuit, a totem pole circuit, and a dedicated gate driver IC. The choice of gate drive circuit depends on the specific application requirements, such as switching frequency, voltage, and current.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SGT65R65AL Overview

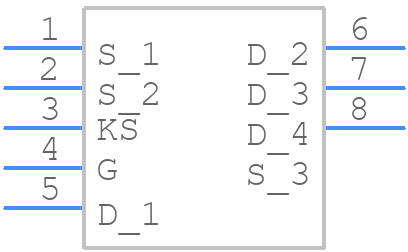

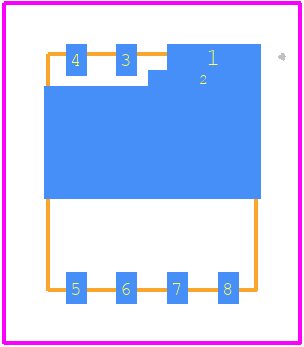

Use the download button to access the SGT65R65AL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SGT65,
or try a keyword search, such as Power Field-Effect Transistors
