SH8518F600BPEP - Ohmite

Description: Current Sense Resistors - Through Hole .00001OHM 1% 36W 100PPM

Download SH8518F600BPEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SH8518F600BPEP - Ohmite - PCB symbol
click to zoom
PCB Footprints

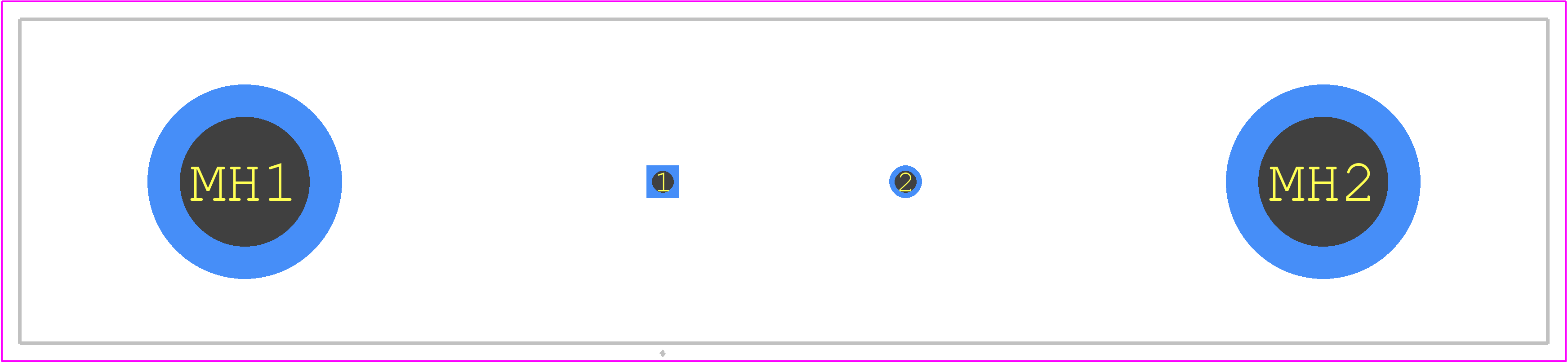

SH8518F600BPEP - Ohmite PCB footprint - Other - Other - SH8518F600BPEP-1
click to zoom
3D Models
SH8518F600BPEP - Ohmite - 3D model - Other - SH8518F600BPEP-1
click to zoom

SH8518F600BPEP Details

  • Manufacturer Part Number:

    SH8518F600BPEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    6.3

  • Construction:

    Rectangular

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Height:

    3 mm

  • Package Length:

    85 mm

  • Package Style:

    RECTANGULAR

  • Package Width:

    18 mm

  • Rated Power Dissipation (P):

    36 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.0001 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    LUG

  • Tolerance:

    1%

SH8518F600BPEP Frequently Asked Questions (FAQs)

  • The thermal resistance of the SH8518F600BPEP is typically around 1.5°C/W, but this can vary depending on the specific application and mounting method. It's recommended to consult with Ohmite's application engineers for more detailed information.
  • Yes, the SH8518F600BPEP is RoHS and REACH compliant, making it suitable for use in a wide range of applications, including those in the European Union.
  • The recommended torque for mounting the SH8518F600BPEP is typically around 10-12 in-lbs (1.1-1.4 Nm), but this can vary depending on the specific application and mounting method. It's recommended to consult with Ohmite's application engineers for more detailed information.
  • Yes, the SH8518F600BPEP is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The maximum operating temperature of the SH8518F600BPEP is 150°C, making it suitable for use in a wide range of applications, including those in high-temperature environments.
