SH8536F1K0APEP - Ohmite

Description: Current Sense Resistors - Through Hole .00005OHM 1% 50W 50PPM

Download SH8536F1K0APEP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SH8536F1K0APEP - Ohmite - PCB symbol
click to zoom
PCB Footprints

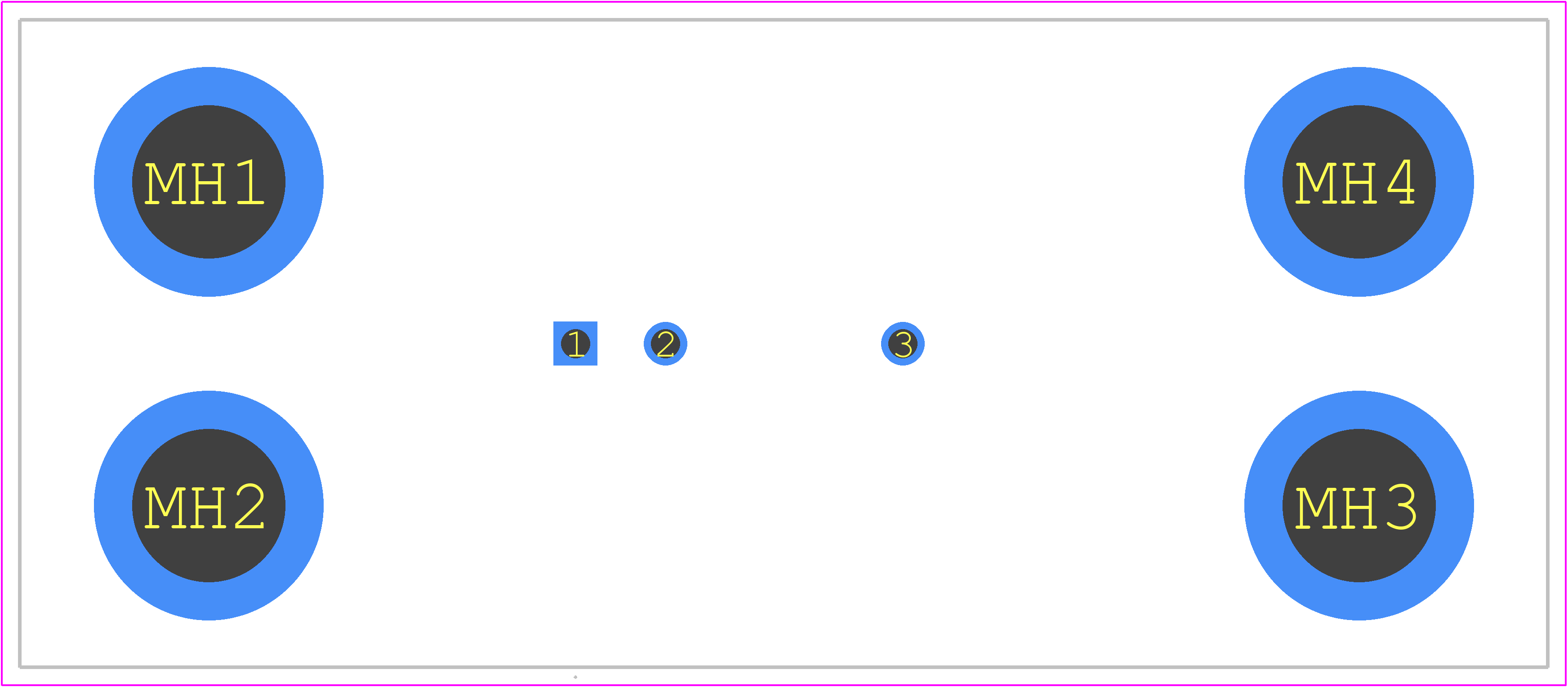

SH8536F1K0APEP - Ohmite PCB footprint - Other - Other - SH8536F1K0APEP-3
click to zoom
3D Models
SH8536F1K0APEP - Ohmite - 3D model - Other - SH8536F1K0APEP-3
click to zoom

SH8536F1K0APEP Details

  • Manufacturer Part Number:

    SH8536F1K0APEP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.29.00.00

  • Manufacturer:

    Ohmite Mfg Co

  • YTEOL:

    6.3

  • Construction:

    Rectangular

  • Mounting Feature:

    CHASSIS MOUNT

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -50 °C

  • Package Height:

    3 mm

  • Package Length:

    85 mm

  • Package Style:

    RECTANGULAR

  • Package Width:

    36 mm

  • Rated Power Dissipation (P):

    50 W

  • Rated Temperature:

    70 °C

  • Reference Standard:

    AEC-Q200

  • Resistance:

    0.00005 Ω

  • Resistor Type:

    FIXED RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL STRIP

  • Temperature Coefficient:

    100 ppm/°C

  • Terminal Shape:

    LUG

  • Tolerance:

    1%

SH8536F1K0APEP Frequently Asked Questions (FAQs)

  • The thermal resistance of the SH8536F1K0APEP is typically around 1.5°C/W, but it's recommended to consult with Ohmite's application engineers for specific thermal design considerations.
  • Yes, the SH8536F1K0APEP is RoHS and REACH compliant, meeting the European Union's directives for restricted substances and hazardous materials.
  • The recommended torque for the SH8536F1K0APEP's screw terminals is 8-10 in-lbs (0.9-1.1 Nm). Over-torquing can damage the terminals, so it's essential to follow the recommended torque specification.
  • Yes, the SH8536F1K0APEP is designed to withstand high-vibration environments, but it's recommended to consult with Ohmite's application engineers to ensure the resistor is properly secured and mounted to prevent damage or failure.
  • The power derating curve for the SH8536F1K0APEP is typically provided by Ohmite's application engineers upon request. They can provide guidance on how to derate the resistor's power based on ambient temperature and other environmental factors.
