SH8MA2GZETB - ROHM Semiconductor

Description: 30V Nch+Pch Power MOSFET

Download SH8MA2GZETB Model

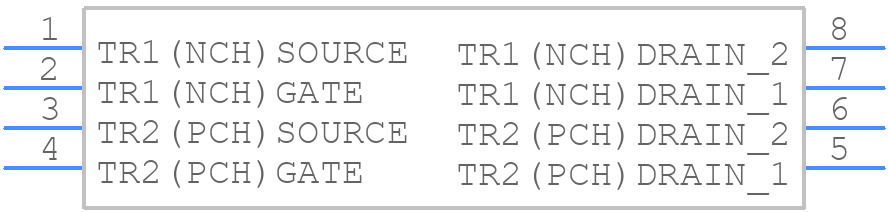

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SH8MA2GZETB - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8-ROHM
click to zoom
3D Models
SH8MA2GZETB - ROHM Semiconductor  - 3D model - Small Outline Packages - SOP8-ROHM
click to zoom

SH8MA2GZETB Details

  • Manufacturer Part Number:

    SH8MA2GZETB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2018-11-20

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.32

  • Avalanche Energy Rating (Eas):

    1.1 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain-source On Resistance-Max:

    0.08 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    12 A

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SH8MA2GZETB Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad design with a minimum size of 2.5mm x 2.5mm, and a thermal via array with a minimum of 10 vias, 0.3mm in diameter, spaced 1.2mm apart, to ensure efficient heat dissipation.
  • To ensure reliable operation in high-temperature environments, it's essential to follow ROHM's recommended derating guidelines, which can be found in the datasheet. Additionally, consider using a heat sink or thermal interface material to reduce the junction temperature.
  • Although the datasheet doesn't explicitly state the maximum allowed voltage for the input pins, ROHM recommends limiting the input voltage to VCC + 0.3V to prevent damage to the device.
  • Yes, the SH8MA2GZETB is suitable for high-frequency applications up to 100MHz. However, it's essential to follow proper PCB design and layout guidelines to minimize signal integrity issues and ensure reliable operation.
  • ROHM recommends following standard ESD protection guidelines, such as using ESD-sensitive handling procedures, and incorporating ESD protection devices, such as TVS diodes or ESD arrays, in the circuit design.
