SH8MA3TB1 - ROHM Semiconductor

Description: 30V Nch+Pch Power MOSFET

Download SH8MA3TB1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

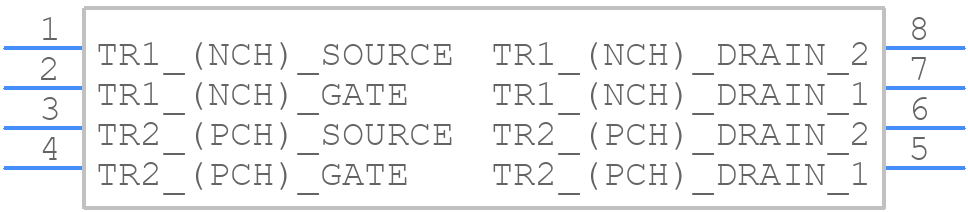

Symbol
SH8MA3TB1 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
SH8MA3TB1 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead sop
click to zoom
3D Models
SH8MA3TB1 - ROHM Semiconductor - 3D model - Small Outline Packages - 8 lead sop
click to zoom

SH8MA3TB1 Details

  • Manufacturer Part Number:

    SH8MA3TB1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2017-11-10

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.32

  • Avalanche Energy Rating (Eas):

    1.7 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain-source On Resistance-Max:

    0.057 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SH8MA3TB1 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the IC, and a 2-layer or 4-layer PCB with thermal vias can help to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended.
  • To ensure stability, a minimum output capacitance of 10uF is recommended, and the output capacitor should be placed as close to the IC as possible. Additionally, a 1uF capacitor on the input pin can help to filter out noise.
  • Although the datasheet specifies a maximum input voltage of 18V, it's recommended to limit the input voltage to 15V to ensure reliable operation and prevent damage to the IC.
  • Implementing overcurrent protection (OCP) and overvoltage protection (OVP) circuits can help prevent damage to the IC. Additionally, a thermal shutdown circuit can be used to prevent overheating.
  • A 10uF to 22uF ceramic capacitor (X5R or X7R dielectric) is recommended for the input pin to filter out noise and ensure stable operation.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SH8MA3TB1 Overview

Use the download button to access the SH8MA3TB1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SH8MA, or try a keyword search, such as Power Field-Effect Transistors
