SH8MA4TB1 - ROHM Semiconductor

Description: 30V Nch+Pch Power MOSFET

Download SH8MA4TB1 Model

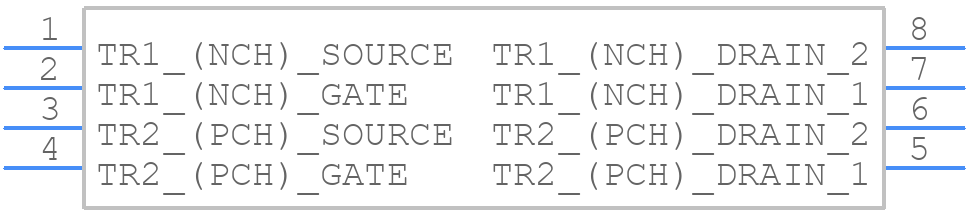

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SH8MA4TB1 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - 8 lead sop
click to zoom
3D Models
SH8MA4TB1 - ROHM Semiconductor  - 3D model - Small Outline Packages - 8 lead sop
click to zoom

SH8MA4TB1 Details

  • Manufacturer Part Number:

    SH8MA4TB1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • Date Of Intro:

    2017-11-10

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    5.4

  • Avalanche Energy Rating (Eas):

    5.7 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    30 V

  • Drain-source On Resistance-Max:

    0.0325 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-G8

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    8

  • Operating Mode:

    ENHANCEMENT MODE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Pulsed Drain Current-Max (IDM):

    18 A

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SH8MA4TB1 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for SH8MA4TB1 is -40°C to 125°C.
  • The power-up sequence for SH8MA4TB1 should follow the recommended sequence in the datasheet: VCC, then VREF, and finally VIN. This ensures proper initialization and prevents damage to the device.
  • The maximum allowed voltage on the VIN pin is 36V. Exceeding this voltage may damage the device.
  • The output voltage of SH8MA4TB1 can be calculated using the formula: VOUT = VREF x (1 + R1/R2), where R1 and R2 are the external resistors connected to the FB pin.
  • The EN (Enable) pin is used to enable or disable the SH8MA4TB1. When EN is high, the device is enabled, and when EN is low, the device is disabled. This pin can be used to implement power-saving modes or to shut down the device when not in use.
