Samtec provides a recommended PCB layout and land pattern in their application notes and design files, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize signal integrity issues.
Yes, the SHF-108-01-L-D-SM-LC is designed for high-speed applications and can support differential signals up to 28 Gbps. However, it's crucial to follow proper signal integrity design practices and consider factors like impedance matching, signal routing, and termination to ensure reliable data transmission.
The SHF-108-01-L-D-SM-LC has an operating temperature range of -40°C to 105°C. However, it's essential to consider the temperature rating of the specific application and ensure that the connector is used within its recommended operating range to maintain reliability and performance.
Yes, the SHF-108-01-L-D-SM-LC is designed for automated assembly and reflow soldering processes. Samtec provides guidance on soldering profiles and assembly techniques in their application notes and technical documentation.
The SHF-108-01-L-D-SM-LC has a mating cycle life of 500 cycles minimum, which means it can withstand at least 500 mating and unmating cycles without significant degradation in performance. However, the actual mating cycle life may vary depending on the application and environmental conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SHF-108-01-L-D-SM-LC Overview

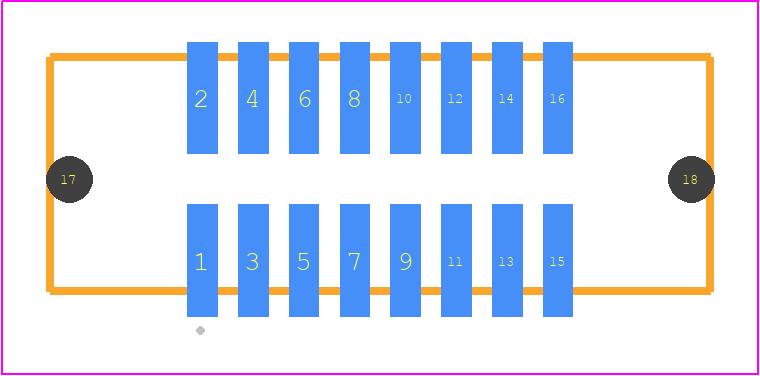

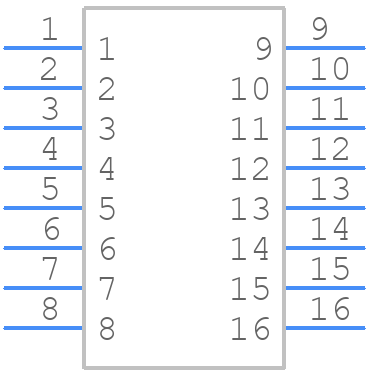

Use the download button to access the SHF-108-01-L-D-SM-LC schematic symbol, PCB footprint, and 3D model.
