SHF-112-01-L-D-RA footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

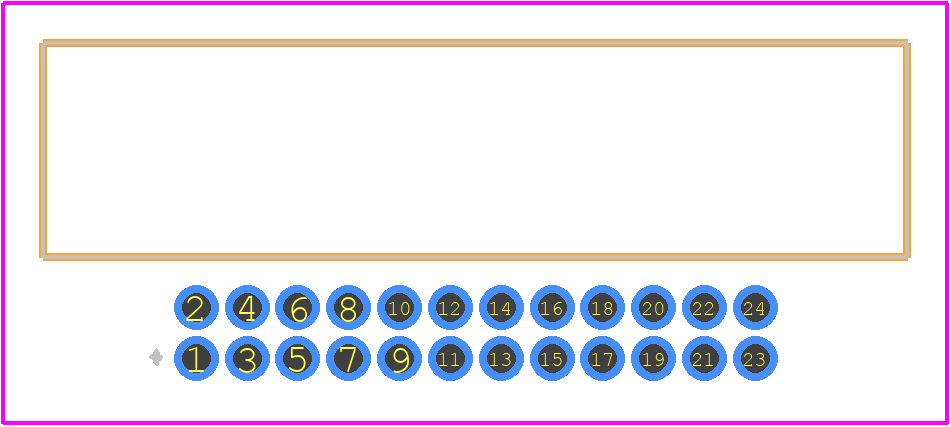

SHF-112-01-L-D-RA - SAMTEC PCB footprint - Other - Other - SHF-112-01-L-D-RA-1

click to zoom

3D Models

SHF-112-01-L-D-RA - SAMTEC - 3D model - Other - SHF-112-01-L-D-RA-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SHF-112-01-L-D-RA
Part Number SHF-112-01-L-D-RA
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - SHF-112-01-L-D-RA-1
Released Date Nov 15, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SHF-112-01-L-D-RA Details

Manufacturer Part Number:
SHF-112-01-L-D-RA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
3 Weeks
Manufacturer:
Samtec Inc
YTEOL:
9.15
Additional Feature:
SHROUDED
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
GOLD (10)
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
PHOSPHOR BRONZE
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
24

SHF-112-01-L-D-RA Frequently Asked Questions (FAQs)

The recommended mating sequence for SHF-112-01-L-D-RA is to mate the connectors in a perpendicular orientation, ensuring the guides are aligned, and then rotate the connectors into their final position.
To ensure reliable connections, make sure the connectors are clean and free of debris, use the correct mating force, and avoid over-tightening or over-mating the connectors.
The operating temperature range for SHF-112-01-L-D-RA is -55°C to 125°C, but it's recommended to consult the datasheet for specific temperature ratings for your application.
Yes, the SHF-112-01-L-D-RA is designed to withstand high-vibration environments, but it's recommended to consult with Samtec Inc or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
The recommended torque for SHF-112-01-L-D-RA is 0.5-1.5 N·m (4-12 in·lb), but it's recommended to consult the datasheet or Samtec Inc for specific torque recommendations for your application.

Trust Checks

Expert Contribution

System Verified

Community Approved

SHF-112-01-L-D-RA Overview

Use the download button to access the SHF-112-01-L-D-RA schematic symbol, PCB footprint, and 3D model.
