SHF-112-01-L-D-TH - SAMTEC

Description: .050" Shrouded Terminal Strip For FFSD, through hole, dual row, positions per row

Download SHF-112-01-L-D-TH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SHF-112-01-L-D-TH - SAMTEC - PCB symbol
click to zoom

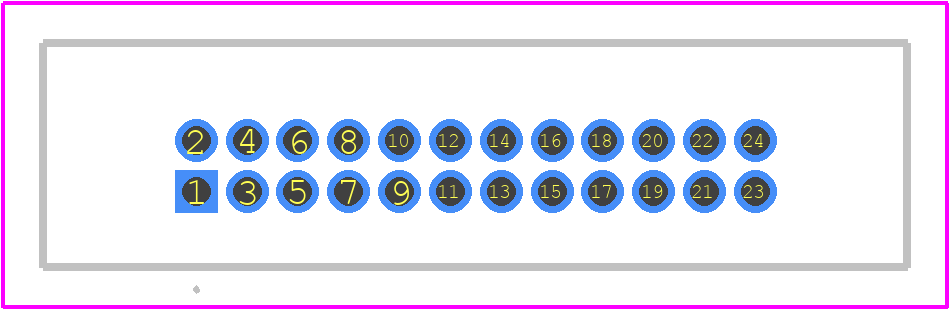

PCB Footprints
SHF-112-01-L-D-TH - SAMTEC PCB footprint - Other - Other - SHF-112-01-L-D-TH-3
click to zoom
3D Models
SHF-112-01-L-D-TH - SAMTEC - 3D model - Other - SHF-112-01-L-D-TH-3
click to zoom

SHF-112-01-L-D-TH Details

  • Manufacturer Part Number:

    SHF-112-01-L-D-TH

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia, USA

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    2 Weeks, 6 Days

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.15

  • Additional Feature:

    SHROUDED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    24

SHF-112-01-L-D-TH Frequently Asked Questions (FAQs)

  • Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also in the product's 3D model and footprint files available on their website.
  • To ensure reliable mating and unmating, follow Samtec's recommended mating and unmating sequence, and ensure the connector is properly aligned and seated. Also, consider using a connector retention mechanism, such as a screw or clip, to secure the connector in place.
  • The SHF-112-01-L-D-TH connector has an operating temperature range of -55°C to +125°C, but it's essential to check the specific temperature rating for the application and ensure it meets the requirements.
  • While the SHF-112-01-L-D-TH connector is designed to be rugged, it's crucial to evaluate its suitability for high-vibration or harsh environments. Samtec offers specialized connectors for such applications, and it's recommended to consult with their technical support team for guidance.
  • The recommended torque for the screw terminals is typically specified in the product's datasheet or in Samtec's Application Notes document (AN-105). For the SHF-112-01-L-D-TH, the recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHF-112-01-L-D-TH Overview

Use the download button to access the SHF-112-01-L-D-TH schematic symbol, PCB footprint, and 3D model.
