Samtec provides a recommended PCB layout and land pattern in their application notes and design files, which can be found on their website. It's essential to follow these guidelines to ensure proper mating and minimize signal integrity issues.
Yes, the SHF-113-01-L-D-SM-LC is designed for high-speed applications and can support differential signals up to 28 Gbps. However, it's crucial to follow proper signal integrity design practices and consider factors like impedance matching, signal routing, and termination to ensure reliable data transmission.
The SHF-113-01-L-D-SM-LC has an operating temperature range of -40°C to 125°C, making it suitable for most industrial and commercial applications. However, it's essential to consider the temperature range of the entire system and ensure that all components can operate within the specified range.
Yes, the SHF-113-01-L-D-SM-LC is compatible with lead-free soldering processes and meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
The SHF-113-01-L-D-SM-LC has a typical mating cycle life of 500 cycles, making it suitable for applications where frequent mating and unmating are required. However, the actual mating cycle life may vary depending on factors like usage, environment, and handling.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SHF-113-01-L-D-SM-LC Overview

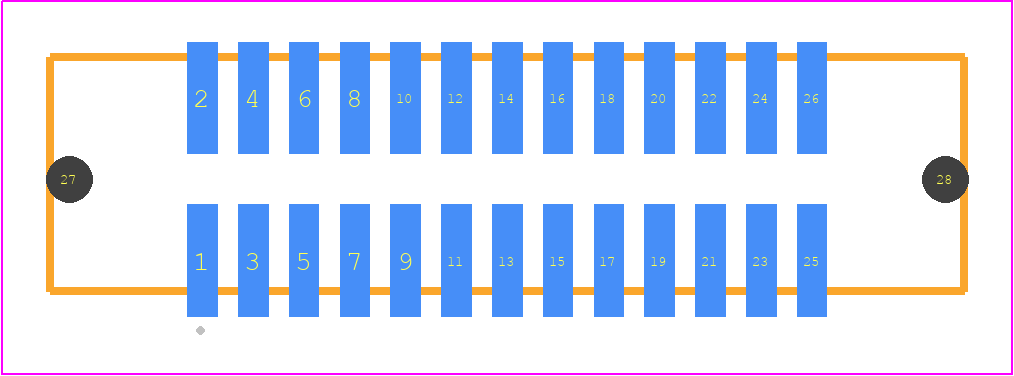

Use the download button to access the SHF-113-01-L-D-SM-LC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1,
or try a keyword search, such as Headers and Edge Type Connectors
