SHF-115-01-L-D-SM-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

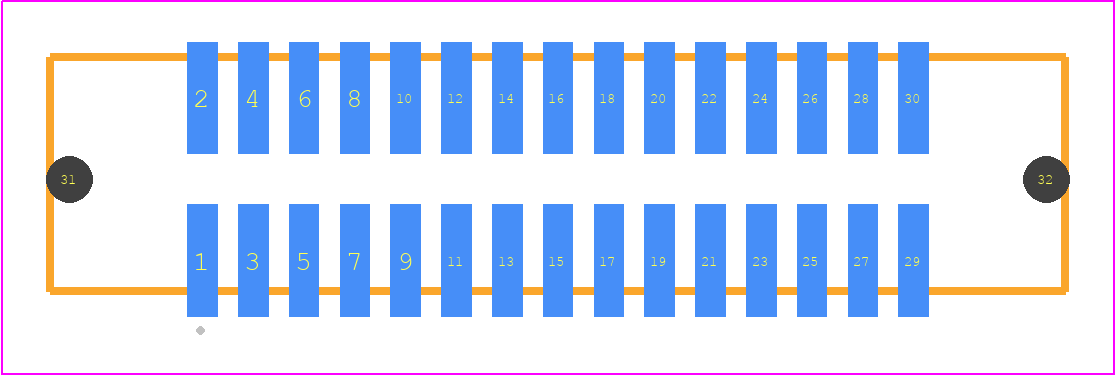

SHF-115-01-L-D-SM-LC - SAMTEC PCB footprint - Other - Other - SHF-115-01-X-D-SM-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SHF-115-01-L-D-SM-LC
Part Number SHF-115-01-L-D-SM-LC
Manufacturer SAMTEC
Pin Count 30
Part Category Connector
Package Category Other
Footprint Name Other - SHF-115-01-X-D-SM-LC
Released Date Jun 8, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SHF-115-01-L-D-SM-LC Details

Manufacturer Part Number:
SHF-115-01-L-D-SM-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
8 Weeks, 2 Days
Manufacturer:
Samtec Inc
YTEOL:
12
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
30

SHF-115-01-L-D-SM-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for SHF-115-01-L-D-SM-LC is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the SHF-115-01-L-D-SM-LC is designed for high-speed applications up to 28 Gbps. However, it's essential to follow proper PCB design and layout guidelines to ensure signal integrity.
The operating temperature range for SHF-115-01-L-D-SM-LC is -40°C to 125°C. However, it's recommended to consult the datasheet for specific temperature ratings for different applications.
Yes, the SHF-115-01-L-D-SM-LC is designed for automated assembly processes, including pick-and-place and reflow soldering. However, it's essential to follow Samtec's recommended assembly guidelines.
The typical lead time for SHF-115-01-L-D-SM-LC can vary depending on the quantity and availability. It's recommended to check with Samtec or an authorized distributor for the most up-to-date lead time information.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

SHF-115-01-L-D-SM-LC Overview

Use the download button to access the SHF-115-01-L-D-SM-LC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1, or try a keyword search, such as Headers and Edge Type Connectors
