SHF-115-01-L-D-TH-TR - SAMTEC

Description: Headers & Wire Housings Shrouded Terminal Strip, 0.050 pitch

Download SHF-115-01-L-D-TH-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SHF-115-01-L-D-TH-TR - SAMTEC - PCB symbol
click to zoom

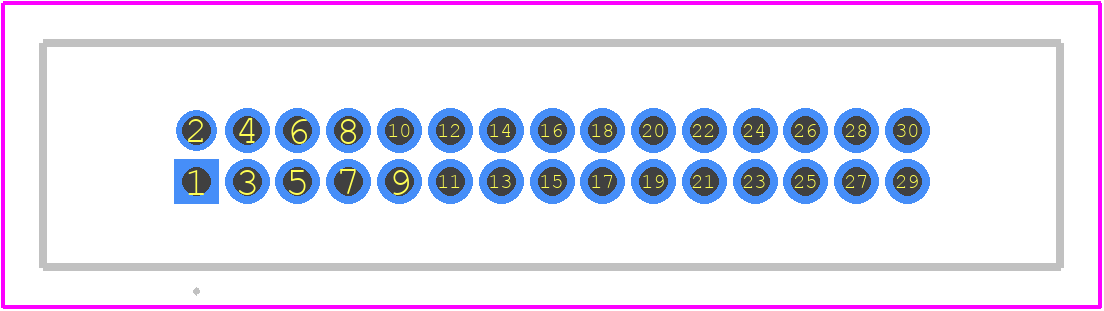

PCB Footprints
SHF-115-01-L-D-TH-TR - SAMTEC PCB footprint - Other - Other - SHF-115-01-L-D-TH-TR-1
click to zoom
3D Models
SHF-115-01-L-D-TH-TR - SAMTEC - 3D model - Other - SHF-115-01-L-D-TH-TR-1
click to zoom

SHF-115-01-L-D-TH-TR Details

  • Manufacturer Part Number:

    SHF-115-01-L-D-TH-TR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    TIN OVER NICKEL

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Packing Method:

    TR

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

SHF-115-01-L-D-TH-TR Frequently Asked Questions (FAQs)

  • Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also in the product's 3D model and footprint files available on their website.
  • To ensure reliable mating and unmating, follow Samtec's recommended mating and unmating sequence, and ensure the connector is properly aligned and seated. Also, consider using a connector retention mechanism, such as a screw or clip, to secure the connector in place.
  • The SHF-115-01-L-D-TH-TR connector has an operating temperature range of -55°C to +125°C, but it's essential to check the specific temperature rating for the application and ensure it meets the requirements.
  • While the SHF-115-01-L-D-TH-TR connector is designed to be rugged, it's crucial to evaluate its suitability for high-vibration or harsh environments. Samtec offers specialized connectors and accessories for such applications; consult with their technical support team for guidance.
  • The recommended torque for the screw terminals is typically specified in the product's datasheet or in Samtec's Application Notes document (AN-105). For the SHF-115-01-L-D-TH-TR, the recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm).
