Samtec provides a recommended PCB layout and land pattern in their Application Notes document (AN-105) and also in the product's 3D model and footprint files available on their website.
To ensure reliable mating and unmating, follow Samtec's recommended mating and unmating sequence, and ensure the connector is properly aligned and seated. Also, consider using a connector retention mechanism, such as a screw or clip, to secure the connector in place.
The SHF-119-01-L-D-SM-LC connector has an operating temperature range of -55°C to +125°C, but it's essential to check the specific temperature rating for the specific application and environment.
While the SHF-119-01-L-D-SM-LC connector is designed to be rugged, it's essential to evaluate its suitability for high-vibration or harsh environments. Consider factors like connector retention, PCB design, and environmental sealing to ensure reliable operation.
The recommended torque for the screw or clip used to secure the connector is typically specified in the product's datasheet or application notes. For the SHF-119-01-L-D-SM-LC, the recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm).
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SHF-119-01-L-D-SM-LC Overview

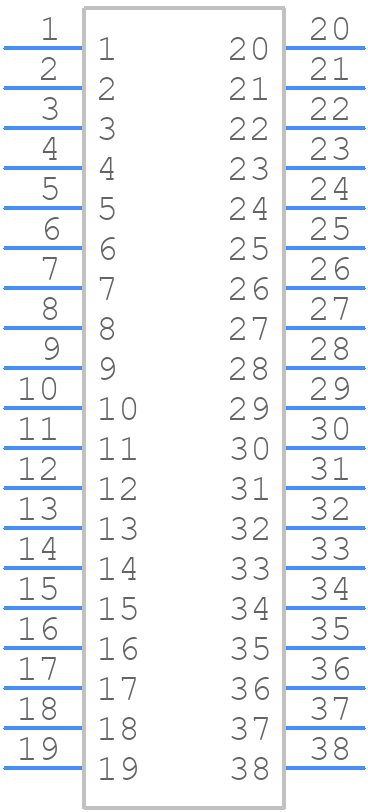

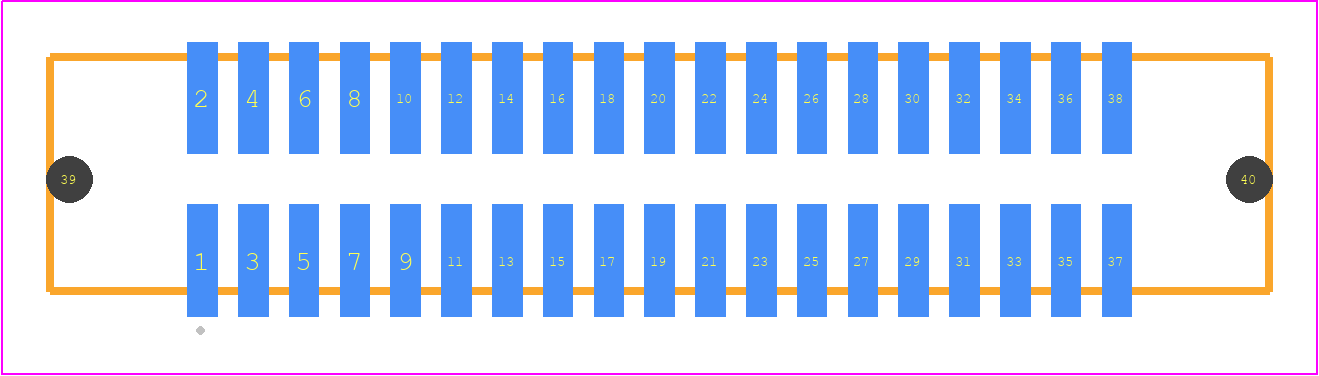

Use the download button to access the SHF-119-01-L-D-SM-LC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like SHF-1,
or try a keyword search, such as Headers and Edge Type Connectors
