SHT20-TR-1.5KS - Sensirion

Description: Humidity, Temperature 0 ~ 100% RH I2C ±3% RH 8 s Surface Mount

Download SHT20-TR-1.5KS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

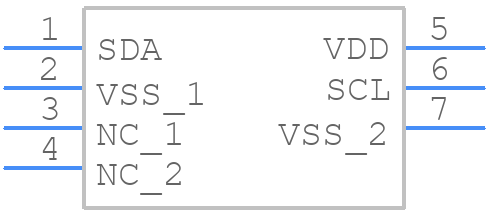

Symbol
SHT20-TR-1.5KS - Sensirion - PCB symbol
click to zoom
PCB Footprints
SHT20-TR-1.5KS - Sensirion PCB footprint - Other - Other - (DFN) package 3 x 3mm
click to zoom
3D Models
SHT20-TR-1.5KS - Sensirion - 3D model - Other - (DFN) package 3 x 3mm
click to zoom

SHT20-TR-1.5KS Details

  • Manufacturer Part Number:

    SHT20-TR-1.5KS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    DFN-6

  • Country Of Origin:

    Switzerland

  • Manufacturer:

    Sensirion

  • YTEOL:

    3

  • Body Breadth:

    3 mm

  • Body Height:

    1.1 mm

  • Body Length or Diameter:

    3 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    DIGITAL VOLTAGE

  • Package Equivalence Code:

    SOLCC8,.12,40

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

SHT20-TR-1.5KS Frequently Asked Questions (FAQs)

  • The recommended operating voltage for the SHT20-TR-1.5KS is 2.4V to 5.5V.
  • The SHT20-TR-1.5KS uses a 2-wire serial interface (I2C) for communication. Connect VCC to a 2.4V to 5.5V power source, GND to ground, SCL to the microcontroller's I2C clock line, and SDA to the microcontroller's I2C data line.
  • The SHT20-TR-1.5KS has a temperature accuracy of ±0.1°C (±0.18°F) from -20°C to 60°C (-4°F to 140°F) and ±0.2°C (±0.36°F) from -40°C to -20°C (-40°F to -4°F).
  • The SHT20-TR-1.5KS is factory-calibrated and does not require additional calibration. However, if you need to perform a calibration check, you can use the built-in heater to perform a self-test.
  • The response time of the SHT20-TR-1.5KS is typically 4-6 seconds for temperature and 8-12 seconds for humidity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SHT20-TR-1.5KS Overview

Use the download button to access the SHT20-TR-1.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT20, or try a keyword search, such as Other Sensors/Transducers
