- Part Number SHT31-DIS-B2.5KS
- Manufacturer Sensirion
- Pin Count 9
- Part Category Integrated Circuit
- Package Category Small Outline No-lead
- Footprint Name Small Outline No-lead - SHT3x-DIS-1
- Released Date Aug 8, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SHT31-DIS-B2.5KS Details
-
Manufacturer Part Number:
SHT31-DIS-B2.5KS
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Switzerland
-
ECCN Code:
EAR99
-
Manufacturer:
Sensirion
-
Body Breadth:
2.5 mm
-
Body Height:
0.9 mm
-
Body Length or Diameter:
2.5 mm
-
JESD-609 Code:
e4
-
Mounting Feature:
SURFACE MOUNT
SHT31-DIS-B2.5KS Frequently Asked Questions (FAQs)
-
Sensirion recommends a reflow soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30-60 seconds, and a total process time of 3-5 minutes.
-
Store the SHT31-DIS-B2.5KS in a dry, nitrogen-filled package or a moisture barrier bag with a desiccant packet to maintain a relative humidity below 20%. Avoid exposing the device to ambient air for extended periods.
-
Follow the recommended land pattern and PCB layout guidelines provided in the Sensirion application note 'SHT3x-DIS-B Layout Recommendations' to ensure proper thermal and electrical connections.
-
Calibration is not required for the SHT31-DIS-B2.5KS, as it is calibrated during manufacturing. However, you can perform a system-level calibration to compensate for any system-specific errors or offsets.
-
Power up the SHT31-DIS-B2.5KS by applying VCC first, followed by the signal lines. Power down the device by reversing this sequence, ensuring that the signal lines are released before VCC.
Trust Checks
Community Provided
System Verified
Community Approved
SHT31-DIS-B2.5KS Overview

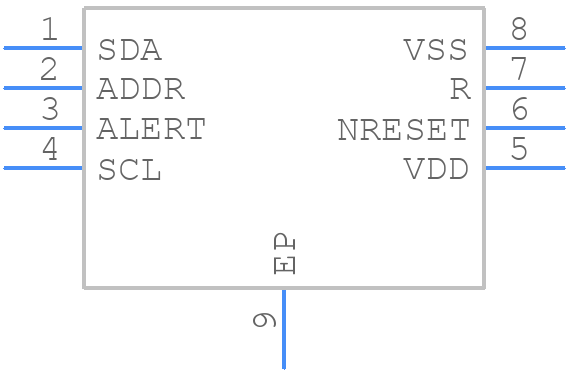

Use the download button to access the SHT31-DIS-B2.5KS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SHT31,
or try a keyword search, such as Other Sensors/Transducers
