SI3406-A-GMR - Skyworks

Description: Power Switch ICs - POE / LAN IEEE 802.3at Type 2 PD interface with dc-dc converter

Download SI3406-A-GMR Model

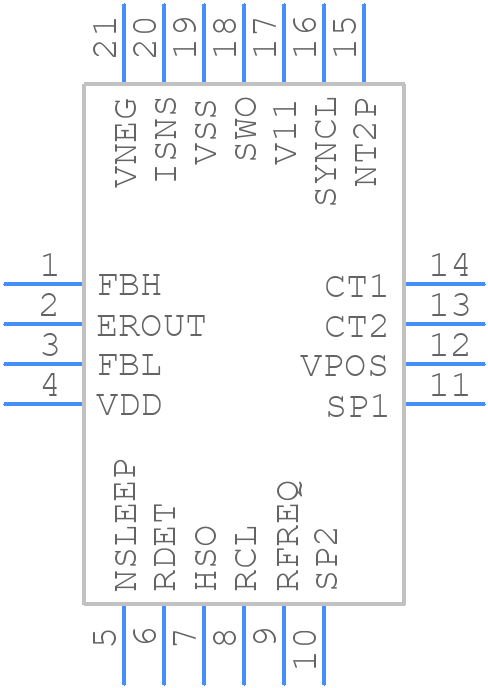

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

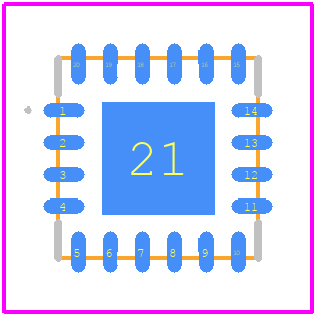

SI3406-A-GMR - Skyworks PCB footprint - Other - Other - 20-Pin, QFN
click to zoom
3D Models
SI3406-A-GMR - Skyworks  - 3D model - Other - 20-Pin, QFN
click to zoom

SI3406-A-GMR Details

  • Manufacturer Part Number:

    SI3406-A-GMR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-20

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    DIGITAL POWER CONTROLLER

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    57 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

SI3406-A-GMR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI3406-A-GMR involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the device close to the antenna. Additionally, it's recommended to use a 50-ohm microstrip line for the RF input and output, and to minimize the number of vias and layer transitions.
  • To optimize the biasing of the SI3406-A-GMR, it's recommended to follow the biasing scheme outlined in the datasheet, which includes using a voltage regulator to set the VCC voltage to 2.85V, and using a resistor divider network to set the VBIAS voltage to 1.4V. Additionally, it's recommended to use a low-dropout linear regulator to minimize power consumption.
  • The maximum power handling capability of the SI3406-A-GMR is 33 dBm, which is the maximum input power that the device can handle without damage. However, the recommended operating power range is 20 dBm to 30 dBm for optimal performance and efficiency.
  • To troubleshoot common issues with the SI3406-A-GMR, it's recommended to check the PCB layout and assembly for any defects or errors, verify that the biasing scheme is correct, and check the input and output matching networks for any impedance mismatches. Additionally, it's recommended to use a spectrum analyzer to measure the output spectrum and identify any sources of noise or distortion.
  • Yes, the SI3406-A-GMR is compatible with lead-free soldering processes, and is RoHS-compliant. However, it's recommended to follow the recommended soldering profile outlined in the datasheet to ensure reliable assembly and operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI3406-A-GMR Overview

Use the download button to access the SI3406-A-GMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI340, or try a keyword search, such as Power Management Circuits
