Skyworks provides a recommended PCB layout guide in their application note AN40434, which includes guidelines for component placement, trace routing, and grounding to ensure optimal performance and minimize electromagnetic interference (EMI).
Optimizing the input and output matching networks requires careful consideration of the device's impedance, frequency range, and power handling. Skyworks recommends using their proprietary software, Skyworks' Impedance Matching Tool, or third-party tools like ADS or AWR to simulate and optimize the matching networks.
While the datasheet specifies an operating temperature range of -40°C to +85°C, Skyworks recommends derating the device's power handling and operating frequency at higher temperatures to ensure reliable operation and prevent thermal damage.
Skyworks recommends following standard ESD protection guidelines, including using ESD-sensitive handling and storage procedures, and incorporating ESD protection devices, such as TVS diodes or ESD arrays, in the PCB design to prevent damage from electrostatic discharge.
Skyworks recommends following the JEDEC J-STD-020 standard for reflow soldering, with a peak temperature of 260°C and a dwell time of 30 seconds. Hand soldering is not recommended due to the device's small size and sensitive internal components.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI3471A-A01-IM Overview

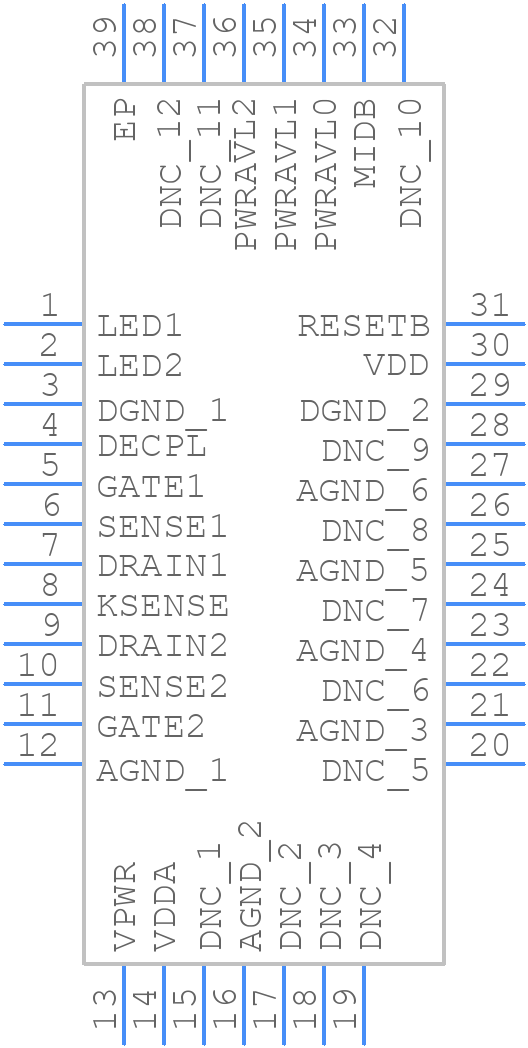

Use the download button to access the SI3471A-A01-IM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI347,
or try a keyword search, such as Other Telecom ICs
