SI4732-A10-GS - Skyworks

Description: RF RX AM/FM 520KHZ-1.71MHZ SOIC

Download SI4732-A10-GS Model

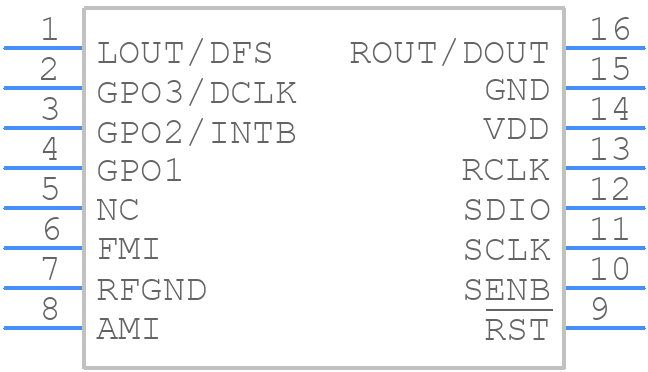

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI4732-A10-GS - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom
3D Models
SI4732-A10-GS - Skyworks  - 3D model - Small Outline Packages - 16-Pin Narrow Body SOIC
click to zoom

SI4732-A10-GS Details

  • Manufacturer Part Number:

    SI4732-A10-GS

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • Demodulation Type:

    AM/FM

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

SI4732-A10-GS Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the SI4732-A10-GS involves placing the device near the antenna, using a solid ground plane, and minimizing the length of the RF traces. A 4-layer PCB with a dedicated ground plane is recommended. The datasheet provides a recommended PCB layout, but it's essential to consult with a PCB design expert to ensure optimal performance.
  • To optimize the antenna design for the SI4732-A10-GS, consider the following: use a 1/4 wavelength monopole antenna, keep the antenna away from metal objects, and use a balun to match the antenna impedance to the device's input impedance. The antenna should be designed to operate at the desired frequency range (e.g., FM, AM, or SW). Consult with an antenna design expert or use antenna design software to optimize the antenna design.
  • The SI4732-A10-GS can handle a maximum input power of +10 dBm (10 mW) at the antenna input. Exceeding this power limit may cause damage to the device or affect its performance. Ensure that the input power is within the specified range to ensure reliable operation.
  • To implement a successful ESD protection scheme for the SI4732-A10-GS, use a combination of TVS diodes, resistors, and capacitors to protect the device from electrostatic discharge. Ensure that the ESD protection circuit is designed to handle the maximum expected ESD voltage and current. Consult with an ESD protection expert or use ESD protection design software to optimize the protection scheme.
  • The SI4732-A10-GS has a maximum junction temperature of 150°C. To ensure reliable operation, ensure that the device is operated within the specified temperature range. Use thermal vias, thermal pads, and heat sinks to dissipate heat effectively. Consult with a thermal management expert to optimize the thermal design.
