A recommended PCB layout for optimal thermal performance would be to use a large copper pad under the device, connected to a solid ground plane, and to use thermal vias to dissipate heat. Additionally, keeping the component placement and routing symmetrical can help reduce thermal gradients.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves, ensure good thermal design, and consider using a heat sink or thermal interface material. Additionally, consider using a thermocouple or temperature sensor to monitor the device temperature.
The SI4925BDY-T1-GE3 has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging. Avoid touching the device pins or handling the device in a way that could generate static electricity.
The SI4925BDY-T1-GE3 is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. It's essential to consult with Vishay Intertechnologies and follow their guidelines for using commercial-grade devices in high-reliability applications.
The recommended soldering conditions for the SI4925BDY-T1-GE3 are a peak temperature of 260°C, with a soldering time of 10-15 seconds. For rework, use a low-temperature soldering iron (around 200°C) and avoid applying excessive heat or force, which can damage the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI4925BDY-T1-GE3 Overview

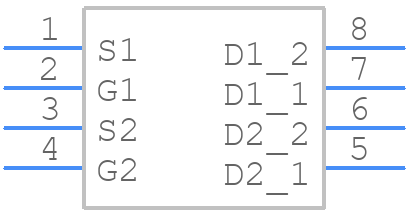

Use the download button to access the SI4925BDY-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI492,
or try a keyword search, such as Small Signal Field-Effect Transistors
