SI53204-A01AGM - Skyworks

Description: PCI Express (PCIe) Fanout Buffer (Distribution) IC 200MHz 1 Output 32-QFN (5x5)

Download SI53204-A01AGM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

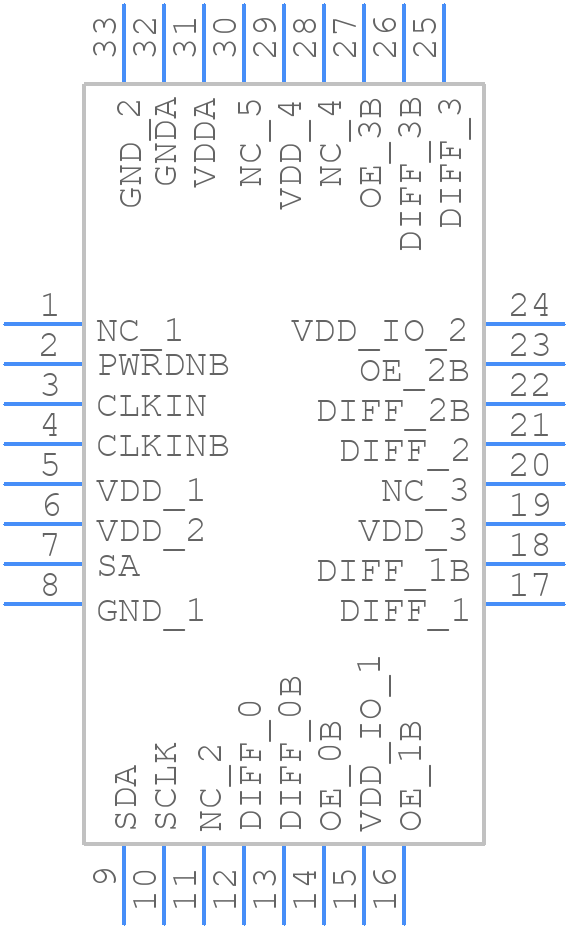

SI53204-A01AGM - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI53204-A01AGM - Skyworks PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-Lead, 5 x 5 mm QFN
click to zoom
3D Models
SI53204-A01AGM - Skyworks - 3D model - Quad Flat No-Lead - 32-Lead, 5 x 5 mm QFN
click to zoom

SI53204-A01AGM Details

  • Manufacturer Part Number:

    SI53204-A01AGM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    7

  • Additional Feature:

    ALSO OPERATES AT 1.8V SUPPLY

  • Family:

    53204

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    31.5 mA

  • Same Edge Skew-Max (tskwd):

    0.05 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    1.575 V

  • Supply Voltage-Min (Vsup):

    1.425 V

  • Supply Voltage-Nom (Vsup):

    1.5 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    5 mm

  • fmax-Min:

    200 MHz

SI53204-A01AGM Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the signal traces short and away from the power plane to minimize noise and radiation. Refer to the Skyworks application note AN40414 for more details.
  • The SI53204-A01AGM is a programmable device. Use the Skyworks-provided software tool, Si53204-EVB-Software, to configure the device for a specific frequency range. The tool allows you to set the frequency, output amplitude, and other parameters.
  • The maximum output power of the SI53204-A01AGM is +10 dBm (10 mW) at 1.8 GHz. However, the output power can be adjusted using the device's programming interface.
  • The SI53204-A01AGM is specified to operate from -40°C to +85°C. However, it can be used in high-temperature applications up to +105°C with some performance degradation. Consult the datasheet and application notes for more information.
  • To ensure accuracy and stability, use a high-quality crystal oscillator as the reference clock, and follow the recommended PCB layout and thermal management guidelines. Additionally, consider using a temperature-compensated crystal oscillator (TCXO) for improved stability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI53204-A01AGM Overview

Use the download button to access the SI53204-A01AGM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI532, or try a keyword search, such as Clock Drivers
