The recommended PCB layout for the SI53306-B-GM involves placing the device near the clock source, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane to reduce noise and EMI.
To optimize power supply decoupling for the SI53306-B-GM, use a combination of ceramic and electrolytic capacitors with different values (e.g., 0.1 μF, 1 μF, and 10 μF) placed close to the device. This helps to filter out high-frequency noise and ensures a stable power supply.
The SI53306-B-GM can support clock frequencies up to 1.5 GHz, but the maximum frequency may vary depending on the specific application and output configuration. It's recommended to consult the datasheet and application notes for specific guidance.
The output clock format for the SI53306-B-GM can be configured using the device's register settings. The device supports various output formats, including LVPECL, LVDS, and CMOS. Consult the datasheet and application notes for specific configuration details.
The typical power consumption of the SI53306-B-GM varies depending on the output frequency, format, and load. However, the device typically consumes around 150-200 mW of power. Consult the datasheet for specific power consumption details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI53306-B-GM Overview

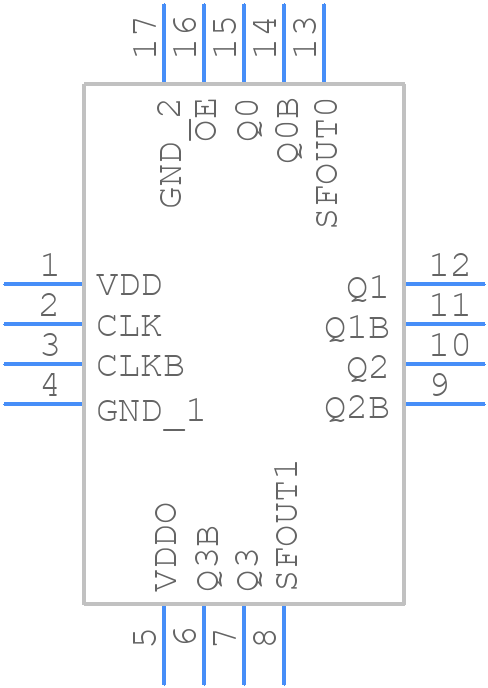

Use the download button to access the SI53306-B-GM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI533,
or try a keyword search, such as Clock Drivers
