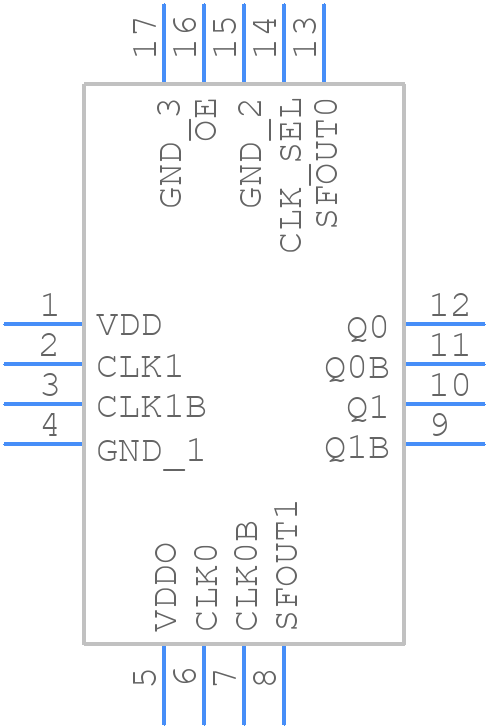

SI53307-B-GM footprint, schematic symbol and 3D model by Skyworks

Symbol

PCB Footprints

3D Models

SI53307-B-GM Details

A 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation. Follow the datasheet's recommended land pattern and thermal pad connection.
Use a combination of high-frequency and low-frequency capacitors (e.g., 100nF and 10uF) as close to the device as possible. Ensure the power supply lines are well-filtered and decoupled to minimize noise and ripple.
A clock input signal with a minimum amplitude of 200mVpp and a rise/fall time of <1ns is recommended. Ensure the clock signal is clean and free of noise to prevent jitter and phase noise.
Follow the datasheet's recommended operating conditions and ensure the device is properly thermal-managed. Use a thermal interface material (TIM) if necessary, and ensure the device is not exposed to extreme temperatures during storage or operation.
Refer to the datasheet's register map and calibration procedure. Ensure the device is properly calibrated during power-up, and the internal registers are set according to the application's requirements.

Community Provided

System Verified

Community Approved

Use the download button to access the SI53307-B-GM schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI533, or try a keyword search, such as Clock Drivers
