SI53360-B-GT footprint, schematic symbol and 3D model by Skyworks

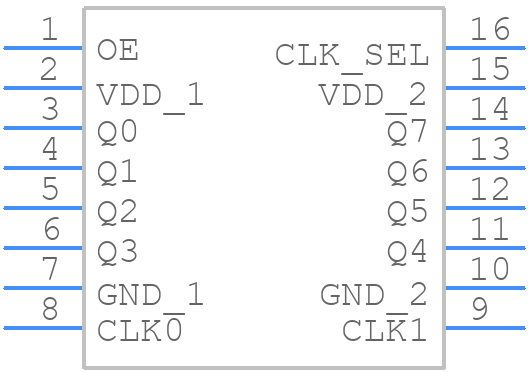

Symbol

PCB Footprints

3D Models

SI53360-B-GT Details

The recommended PCB layout for the SI53360-B-GT involves placing the device near the clock source, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it is recommended to use a 4-layer PCB with a dedicated power plane and a solid ground plane to reduce noise and improve signal integrity.
To optimize the performance of the SI53360-B-GT in a noisy environment, it is recommended to use a low-jitter clock source, add decoupling capacitors near the device, and use a shielded enclosure to reduce electromagnetic interference (EMI). Additionally, using a clock signal with a high signal-to-noise ratio (SNR) and minimizing the length of the clock signal traces can also help to improve performance.
The maximum operating temperature range for the SI53360-B-GT is -40°C to +85°C. However, it is recommended to operate the device within a temperature range of 0°C to +70°C for optimal performance and reliability.
To troubleshoot issues with the SI53360-B-GT, it is recommended to check the power supply voltage, clock signal integrity, and PCB layout. Additionally, using an oscilloscope to measure the clock signal and checking for any signs of noise or jitter can help to identify the root cause of the issue.
Yes, the SI53360-B-GT is compatible with lead-free soldering processes. The device is RoHS-compliant and can be soldered using lead-free soldering techniques.

Community Provided

System Verified

Community Approved

Use the download button to access the SI53360-B-GT schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI533, or try a keyword search, such as Clock Drivers
