SI5517DU-T1-GE3 - Vishay

Description: MOSFET 20V Vds 8V Vgs PowerPAK ChipFET

Download SI5517DU-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

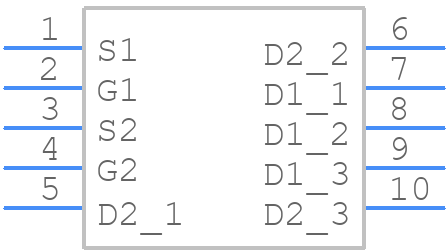

Symbol
SI5517DU-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SI5517DU-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK® ChipFET®
click to zoom
3D Models
SI5517DU-T1-GE3 - Vishay - 3D model - Other - PowerPAK® ChipFET®
click to zoom

SI5517DU-T1-GE3 Details

  • Manufacturer Part Number:

    SI5517DU-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT, POWERPAK, CHIPFET-8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    0

  • Case Connection:

    DRAIN

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    6 A

  • Drain-source On Resistance-Max:

    0.039 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XDSO-C6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    8.3 W

  • Pulsed Drain Current-Max (IDM):

    20 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Pure Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SI5517DU-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI5517DU-T1-GE3 is a standard SOT23-6 package with a 1.8mm x 1.35mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
  • To ensure the SI5517DU-T1-GE3 operates within its recommended operating conditions, maintain a voltage supply between 1.8V and 5.5V, and keep the junction temperature (TJ) below 150°C. Also, ensure the device is operated within its specified frequency range.
  • The maximum allowable power dissipation for the SI5517DU-T1-GE3 is 250mW. Exceeding this limit may cause the device to overheat, leading to reduced performance or even failure.
  • To prevent electrostatic discharge (ESD) damage, handle the SI5517DU-T1-GE3 with an ESD wrist strap or mat, and ensure the workspace is ESD-protected. Avoid touching the device's pins or exposed die.
  • Store the SI5517DU-T1-GE3 in a dry, cool place with a temperature range of -40°C to 125°C. Avoid exposing the device to moisture, direct sunlight, or extreme temperatures.
