For optimal thermal performance, it is recommended to use a 2-layer or 4-layer PCB with a thermal relief pattern under the package. The thermal pad should be connected to a large copper area on the PCB to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it is essential to follow proper thermal management practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device.
The recommended soldering conditions for the SI5922DU-T1-GE3 are: peak temperature of 260°C, soldering time of 10-30 seconds, and a soldering iron temperature of 350°C. It is also recommended to use a solder with a melting point above 217°C.
Yes, the SI5922DU-T1-GE3 is designed to withstand high-vibration environments. However, it is essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
To handle ESD protection for the SI5922DU-T1-GE3, it is recommended to follow standard ESD handling procedures, such as using an ESD wrist strap, ESD mat, and ESD-safe packaging materials. Additionally, the device should be handled in a static-controlled environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI5922DU-T1-GE3 Overview

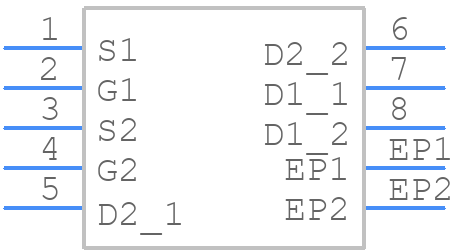

Use the download button to access the SI5922DU-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI592,
or try a keyword search, such as Power Field-Effect Transistors
