SI7141DP-T1-GE3 - Vishay

Description: VISHAY - SI7141DP-T1-GE3 - MOSFET, P CH, -20V, -60A, POWERPAK SO

Download SI7141DP-T1-GE3 Model

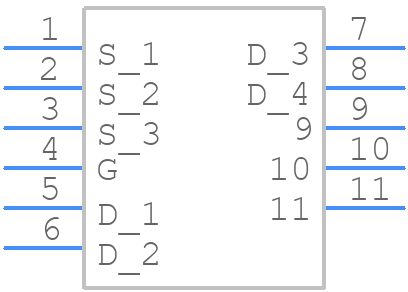

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
SI7141DP-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK® SO-8 Single_1
click to zoom
3D Models
SI7141DP-T1-GE3 - Vishay  - 3D model - Other - PowerPAK® SO-8 Single_1
click to zoom

SI7141DP-T1-GE3 Details

  • Manufacturer Part Number:

    SI7141DP-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, POWERPAK, SOP-8

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    15 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.3

  • Avalanche Energy Rating (Eas):

    80 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    60 A

  • Drain-source On Resistance-Max:

    0.0019 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XDSO-C5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    P-CHANNEL

  • Power Dissipation-Max (Abs):

    104 W

  • Pulsed Drain Current-Max (IDM):

    100 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SI7141DP-T1-GE3 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2 oz copper thickness is recommended.
  • The device requires a stable voltage supply and a bias circuit to ensure proper operation. A voltage regulator and decoupling capacitors should be used to minimize noise and voltage fluctuations.
  • The maximum power dissipation for the SI7141DP-T1-GE3 is 1.4 W. Exceeding this limit may cause the device to overheat and reduce its lifespan.
  • Yes, the SI7141DP-T1-GE3 is qualified for automotive and high-reliability applications. However, additional testing and validation may be required to meet specific industry standards.
  • The SI7141DP-T1-GE3 has built-in ESD protection, but additional external protection measures such as TVS diodes or ESD arrays may be necessary to ensure robustness against electrostatic discharge.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI7141DP-T1-GE3 Overview

Use the download button to access the SI7141DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI714, or try a keyword search, such as Power Field-Effect Transistors
