SI7212DN-T1-GE3 footprint, schematic symbol and 3D model by Vishay

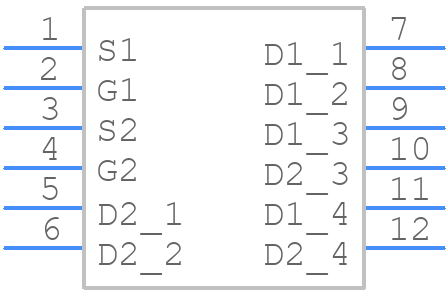

Symbol

click to zoom

PCB Footprints

SI7212DN-T1-GE3 - Vishay PCB footprint - Other - Other - SI7212DN-T1-GE3-4

click to zoom

3D Models

SI7212DN-T1-GE3 - Vishay - 3D model - Other - SI7212DN-T1-GE3-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI7212DN-T1-GE3
Part Number SI7212DN-T1-GE3
Manufacturer Vishay
Pin Count 12
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - SI7212DN-T1-GE3-4
Released Date Oct 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI7212DN-T1-GE3 Details

Manufacturer Part Number:
SI7212DN-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, 1212-8, POWERPAK-8
ECCN Code:
EAR99
Factory Lead Time:
14 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
5.4
Avalanche Energy Rating (Eas):
5 mJ
Case Connection:
DRAIN
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
4.9 A
Drain-source On Resistance-Max:
0.036 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
S-XDSO-C6
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
UNSPECIFIED
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
2.6 W
Pulsed Drain Current-Max (IDM):
20 A
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
C BEND
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON

SI7212DN-T1-GE3 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the SI7212DN-T1-GE3 is a standard SOT23-6 package with a 1.8mm x 1.35mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
To ensure proper biasing, connect the VCC pin to a stable 2.5V to 5.5V power supply, and the GND pin to a solid ground plane. Additionally, decouple the VCC pin with a 10nF to 100nF capacitor to reduce noise and ensure stable operation.
The maximum allowed current through the SI7212DN-T1-GE3's output pins is 20mA. Exceeding this limit may cause damage to the device or affect its reliability.
To protect the SI7212DN-T1-GE3 from ESD and overvoltage, use a TVS diode or a transient voltage suppressor on the input pins. Additionally, consider adding a series resistor and a capacitor to the input pins to filter out noise and transients.
The SI7212DN-T1-GE3 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal management and consider derating the device's specifications for high-temperature applications.
