SI7272DP-T1-GE3 footprint, schematic symbol and 3D model by Vishay

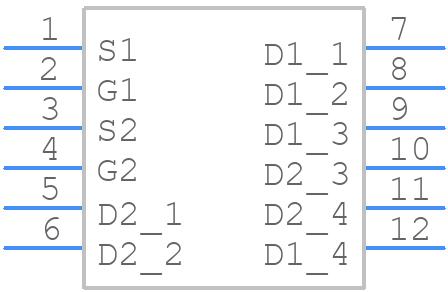

Symbol

click to zoom

PCB Footprints

SI7272DP-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK® SO-8 Dual

click to zoom

3D Models

SI7272DP-T1-GE3 - Vishay - 3D model - Other - PowerPAK® SO-8 Dual

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI7272DP-T1-GE3
Part Number SI7272DP-T1-GE3
Manufacturer Vishay
Pin Count 12
Part Category MOSFET (N-Channel)
Package Category Other
Footprint Name Other - PowerPAK® SO-8 Dual
Released Date Dec 15, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI7272DP-T1-GE3 Details

Manufacturer Part Number:
SI7272DP-T1-GE3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
HALOFEN FREE AND ROHS COMPLIANT, LEADLESS, POWERPAK, SOP-8
ECCN Code:
EAR99
Factory Lead Time:
15 Weeks
Manufacturer:
Vishay Intertechnologies
YTEOL:
5.3
Case Connection:
DRAIN
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE
DS Breakdown Voltage-Min:
30 V
Drain Current-Max (ID):
15 A
Drain-source On Resistance-Max:
0.0093 Ω
FET Technology:
METAL-OXIDE SEMICONDUCTOR
JESD-30 Code:
R-XDSO-C6
JESD-609 Code:
e3
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Operating Mode:
ENHANCEMENT MODE
Operating Temperature-Max:
150 °C
Package Body Material:
UNSPECIFIED
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Polarity/Channel Type:
N-CHANNEL
Power Dissipation-Max (Abs):
22 W
Pulsed Drain Current-Max (IDM):
60 A
Qualification Status:
Not Qualified
Surface Mount:
YES
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
C BEND
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
