SI7858BDP-T1-GE3 - Vishay

Description: MOSFETs 12V Vds 8V Vgs PowerPAK SO-8

Download SI7858BDP-T1-GE3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

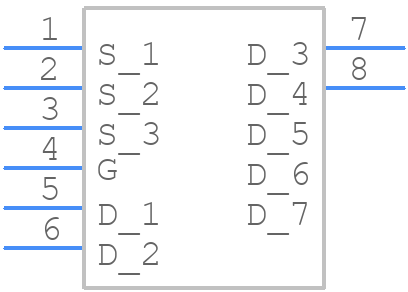

Symbol
SI7858BDP-T1-GE3 - Vishay - PCB symbol
click to zoom
PCB Footprints
SI7858BDP-T1-GE3 - Vishay PCB footprint - Other - Other - PowerPAK SO-8 Single
click to zoom
3D Models
SI7858BDP-T1-GE3 - Vishay - 3D model - Other - PowerPAK SO-8 Single
click to zoom

SI7858BDP-T1-GE3 Details

  • Manufacturer Part Number:

    SI7858BDP-T1-GE3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, LEADLESS, POWERPAK, SOP-8

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    19 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    5.3

  • Avalanche Energy Rating (Eas):

    20 mJ

  • Case Connection:

    DRAIN

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    33 A

  • Drain-source On Resistance-Max:

    0.0025 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-XDSO-C5

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    1

  • Number of Terminals:

    5

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    48 W

  • Pulsed Drain Current-Max (IDM):

    70 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SI7858BDP-T1-GE3 Frequently Asked Questions (FAQs)

  • The recommended PCB footprint for the SI7858BDP-T1-GE3 is a 5-pin SOT23 package with a 1.5mm x 2.5mm body size. A minimum pad size of 0.5mm x 0.5mm is recommended for reliable soldering.
  • To ensure proper biasing, connect the input pin (VIN) to a stable voltage source between 2.5V and 5.5V. The output pin (VOUT) should be decoupled with a 1uF ceramic capacitor to minimize noise and ensure stability.
  • The SI7858BDP-T1-GE3 is rated for operation from -40°C to 125°C. However, it's recommended to derate the device's performance at temperatures above 85°C to ensure reliable operation.
  • Yes, the SI7858BDP-T1-GE3 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions and design guidelines to ensure the device meets the required specifications.
  • To troubleshoot issues with the SI7858BDP-T1-GE3, check the input voltage, output load, and decoupling capacitors. Ensure the device is properly biased, and the output is not overloaded. If issues persist, consult the datasheet or contact Vishay Intertechnologies' technical support for further assistance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI7858BDP-T1-GE3 Overview

Use the download button to access the SI7858BDP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI785, or try a keyword search, such as Power Field-Effect Transistors
