A good PCB layout for the SI7923DN-T1-GE3 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Additionally, consider derating the device's power handling capabilities according to the datasheet's thermal derating curve.
The SI7923DN-T1-GE3 is a sensitive semiconductor device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap, mat, or workstation, and follow standard ESD handling procedures to prevent damage.
Yes, the SI7923DN-T1-GE3 is suitable for high-frequency switching applications. However, ensure that the device is properly bypassed, and the PCB layout is optimized for high-frequency operation. Additionally, consider the device's switching characteristics, such as rise and fall times, to ensure reliable operation.
Follow the recommended soldering and rework conditions outlined in the datasheet, including peak temperatures, soldering times, and rework techniques. Ensure that the device is not exposed to excessive temperatures or mechanical stress during the soldering process.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI7923DN-T1-GE3 Overview

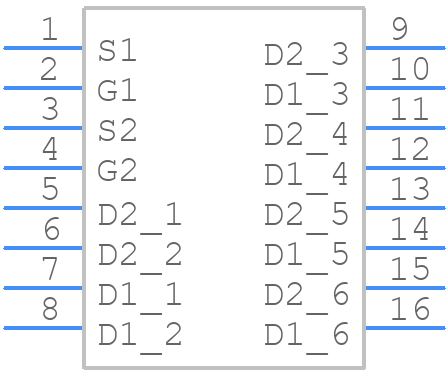

Use the download button to access the SI7923DN-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI792,
or try a keyword search, such as Power Field-Effect Transistors
