A good PCB layout for the SI7942DP-T1-GE3 should include a solid ground plane, wide traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Additionally, consider derating the device's power handling capabilities according to the ambient temperature.
The SI7942DP-T1-GE3 is a sensitive semiconductor device and requires proper ESD protection during handling and assembly. Use wrist straps, anti-static mats, and ESD-safe packaging to prevent damage. Follow standard ESD handling procedures as outlined in ANSI/ESD S20.20.
The SI7942DP-T1-GE3 is a commercial-grade device, but Vishay Intertechnologies offers a range of high-reliability and aerospace-grade products. For high-reliability or aerospace applications, consider using a device specifically designed and qualified for those markets, such as the Vishay's MIL-PRF-19500 or ESCC-qualified products.
Use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point above 217°C. Follow the recommended soldering profile and use a no-clean or water-soluble flux. Ensure the device is properly aligned and seated during assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI7942DP-T1-GE3 Overview

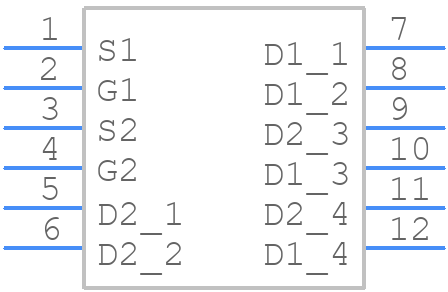

Use the download button to access the SI7942DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI794,
or try a keyword search, such as Power Field-Effect Transistors
