A good PCB layout for the SI7972DP-T1-GE3 should include a solid ground plane, wide copper traces for power and ground, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation in high-temperature environments, ensure proper heat sinking, use a thermally conductive interface material, and follow the recommended PCB layout guidelines. Additionally, consider derating the device's power handling capabilities according to the temperature derating curve provided in the datasheet.
The SI7972DP-T1-GE3 is a sensitive semiconductor device and requires proper ESD protection during handling and assembly. Use an ESD wrist strap or mat, and follow standard ESD handling procedures to prevent damage. The device is also sensitive to moisture, so ensure proper storage and handling to prevent moisture absorption.
The SI7972DP-T1-GE3 is a commercial-grade device, but it can be used in high-reliability or aerospace applications with proper qualification and testing. Consult with Vishay Intertechnologies for specific requirements and guidelines for these applications.
Use a soldering iron with a temperature range of 250°C to 260°C, and a solder with a melting point above 217°C. Follow standard SMT assembly techniques, and ensure the device is properly aligned and secured to the PCB during the assembly process.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI7972DP-T1-GE3 Overview

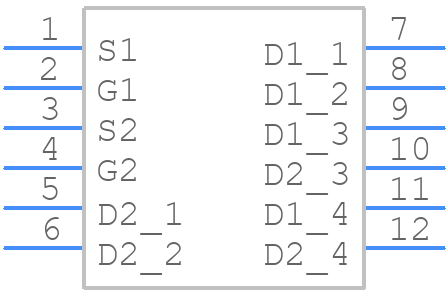

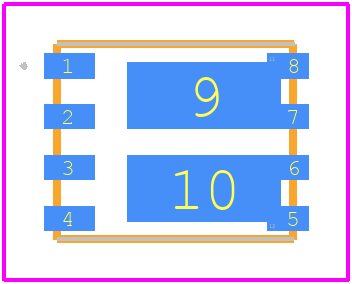

Use the download button to access the SI7972DP-T1-GE3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI797,
or try a keyword search, such as Power Field-Effect Transistors
