SI8230AD-B-ISR - Skyworks

Description: 500mA Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC

Download SI8230AD-B-ISR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this SI8230AD-B-ISR model

Email notifications will be applied after download.

Send part feedback

Symbol

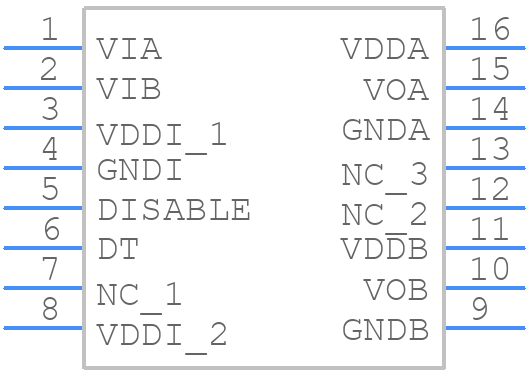

SI8230AD-B-ISR - Skyworks - PCB symbol

PCB Footprints

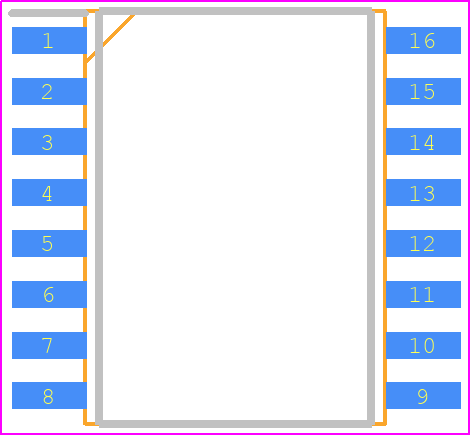

SI8230AD-B-ISR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Wide Body SOIC

3D Models

SI8230AD-B-ISR - Skyworks - 3D model - Small Outline Packages - 16-Pin Wide Body SOIC

Datasheet Download Datasheet
Stock & Prices Price & Stock for SI8230AD-B-ISR
Part Number SI8230AD-B-ISR
Manufacturer Skyworks
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 16-Pin Wide Body SOIC
Released Date Sep 14, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

SI8230AD-B-ISR Details

Manufacturer Part Number:
SI8230AD-B-ISR
Manufacturer:
Skyworks Solutions Inc

Trust Checks

System Verified

SI8230AD-B-ISR Overview

Use the download button to access the SI8230AD-B-ISR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like SI823, or try a keyword search, such as MOSFET Drivers
