Skyworks provides a recommended PCB layout guide in their application note AN302A, which includes guidelines for component placement, trace routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SI8232BB-D-IS requires a specific biasing scheme to operate correctly. Skyworks recommends using a voltage regulator to provide a stable 3.3V supply to the device, and ensuring that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V. Additionally, the device requires a 10uF capacitor between VIN and GND for proper operation.
The SI8232BB-D-IS is rated for operation from -40°C to +125°C, making it suitable for use in a wide range of industrial and automotive applications. However, it's essential to ensure proper thermal management to prevent overheating and ensure reliable operation.
Yes, the SI8232BB-D-IS is designed to meet the requirements of high-reliability and safety-critical applications. Skyworks provides a range of documentation, including a Failure Modes, Effects, and Diagnostic Analysis (FMEDA) report, to support the use of the device in these applications.
Skyworks provides a range of resources to help troubleshoot issues with the SI8232BB-D-IS, including application notes, technical briefs, and a dedicated support team. Engineers can also use tools such as oscilloscopes and logic analyzers to debug the device and identify potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8232BB-D-IS Overview

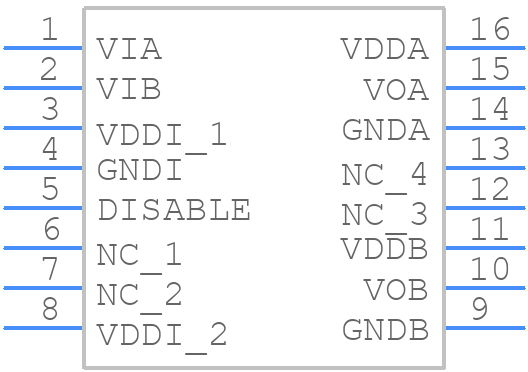

Use the download button to access the SI8232BB-D-IS schematic symbol, PCB footprint, and 3D model.
