The recommended PCB layout involves keeping the device away from high-current carrying traces, using a solid ground plane, and placing thermal vias under the device. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
To ensure EMC, use a shielded enclosure, keep the device away from antennas and high-frequency circuits, and use filtering and shielding on the input and output lines. Additionally, follow the recommended PCB layout and grounding practices.
The maximum allowable voltage on the input pins is 5.5V, exceeding which may cause permanent damage to the device.
To troubleshoot, check the input voltage, output load, and PCB layout. Verify that the device is properly soldered and that there are no solder bridges or cold joints. Use an oscilloscope to check for oscillations and voltage deviations.
Yes, the SI8233AD-D-IS is qualified for automotive and high-reliability applications. However, it's essential to follow the recommended operating conditions, PCB layout, and thermal management guidelines to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8233AD-D-IS Overview

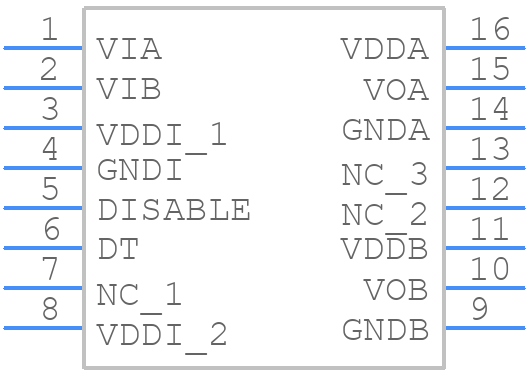

Use the download button to access the SI8233AD-D-IS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
