The recommended PCB layout for optimal performance involves keeping the input and output traces as short as possible, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation across the entire operating temperature range, it's essential to follow the recommended operating conditions, including voltage and current ratings. Additionally, consider the thermal management of the device, and ensure that the PCB design takes into account thermal expansion and contraction.
The SI8234AB-D-IS1 has built-in ESD protection, but it's still essential to follow standard ESD handling precautions, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging. Avoid touching the device pins or exposing them to static electricity.
The SI8234AB-D-IS1 is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional testing and validation. It's recommended to consult with Skyworks Solutions Inc or a qualified reliability engineer to determine the device's suitability for such applications.
To troubleshoot common issues with the SI8234AB-D-IS1, start by verifying the input voltage, output load, and PCB layout. Check for decoupling capacitor values and placement, and ensure that the device is operated within its recommended specifications. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SI8234AB-D-IS1 Overview

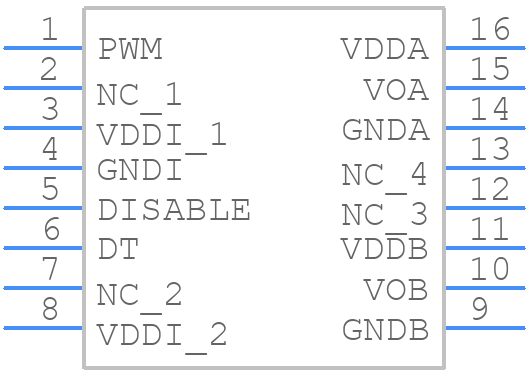

Use the download button to access the SI8234AB-D-IS1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823,
or try a keyword search, such as MOSFET Drivers
