SI8238AD-D-ISR - Skyworks

Description: 4A Gate Driver Capacitive Coupling 5000Vrms 2 Channel 16-SOIC

Download SI8238AD-D-ISR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

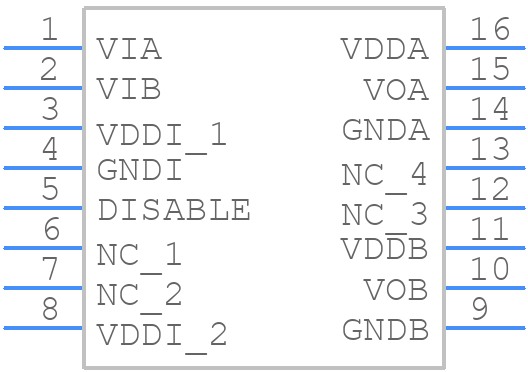

Symbol
SI8238AD-D-ISR - Skyworks - PCB symbol
click to zoom
PCB Footprints
SI8238AD-D-ISR - Skyworks PCB footprint - Small Outline Packages - Small Outline Packages - 16-Pin Wide Body SOIC
click to zoom
3D Models
SI8238AD-D-ISR - Skyworks - 3D model - Small Outline Packages - 16-Pin Wide Body SOIC
click to zoom

SI8238AD-D-ISR Details

  • Manufacturer Part Number:

    SI8238AD-D-ISR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Skyworks Solutions Inc

  • YTEOL:

    8.4

  • High Side Driver:

    YES

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    4 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.65 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage1-Max:

    24 V

  • Supply Voltage1-Min:

    6.5 V

  • Supply Voltage1-Nom:

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.045 µs

  • Turn-on Time:

    0.045 µs

  • Width:

    7.5 mm

SI8238AD-D-ISR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. The device should be placed near the center of the board, and the input and output tracks should be kept short and away from noise sources.
  • The device requires a single 3.3V power supply, and the VCC pin should be decoupled with a 10uF capacitor to ground. The EN pin should be tied to VCC or a digital signal to enable the device.
  • The maximum current rating of the SI8238AD-D-ISR is 1.5A per channel, but it's recommended to derate the current to 1.2A per channel for reliable operation.
  • Check the power supply voltage, ensure proper decoupling, and verify the input and output signals. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet and application notes for specific troubleshooting guidelines.
  • The SI8238AD-D-ISR is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal management guidelines.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SI8238AD-D-ISR Overview

Use the download button to access the SI8238AD-D-ISR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SI823, or try a keyword search, such as MOSFET Drivers
